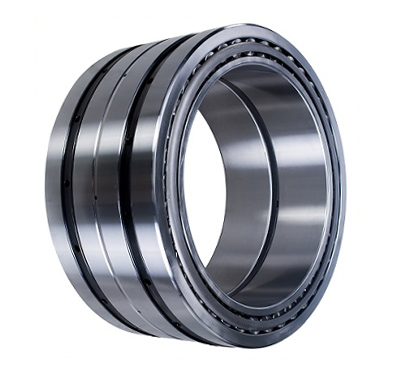

Four row tapered roller bearings are the one kind of roll neck bearings, their radial and axial loading capacity are high, can carry heavy axail loads in two directions, and their radial loading capacity is 3 times heavier than single row tapered roller bearings, but limiting speed is lower. They can be used as axial locating bearings in two directions because they are able to limit axial displacement in two directions within axial clearance. The radial and axial clearance also can be adjusted by changing the width of spacer between inner and outer rings.
Four-row tapered roller bearings are used successfully worldwide for rolling mill bearing arrangements where rolling speeds are slow to moderate. They are mainly used in the working roll necks of hot or cold rolling mills, and roll neck of cogging mills. They usually clearance fit with roll necks to being mounted and dismounted conveniently.
Steel pressed cages are usually used in four row tapered roller bearings, and pin type cages are for large size taper bearings.
We supplies many sizes of four row tapered roller bearings with integral radial shaft seals at both sides. They are available in several designs depending on bearing size as well as on the open (non-sealed) basic design.

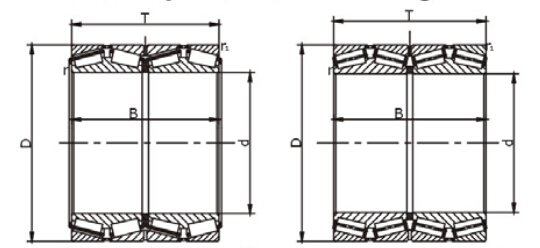

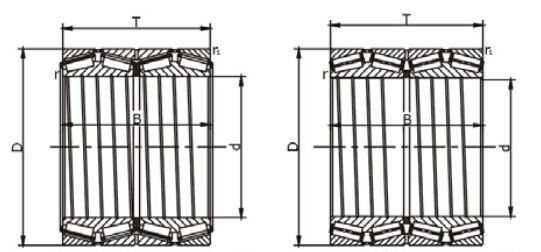

Boundary dimensions | Basic load ratings | Designations | Mass | Limiting speeds | |||||||
mm | kN | Current | Original | kg | r/min | ||||||
d | D | T | rmin | r1min | Cr | Cor | Grease | Oil | |||
150 | 210 | 165 | 2.5 | 2 | 700 | 1700 | 382930 | 2077930 | 16.5 | 670 | 850 |
| 212 | 155 | 3 | 2.5 | 964 | 2350 | 30630 | - | 16.8 | 670 | 850 |
160 | 220 | 165 | 2.5 | 2 | 795 | 2090 | 382932 | 2077932 | 18.5 | 670 | 850 |
| 265 | 173 | 3 | 2.5 | 1450 | 2760 | 380632 | - | 35.7 | 670 | 850 |
170 | 240 | 175 | 3 | 2.5 | 1210 | 3000 | 380634 | - | 24.2 | 670 | 850 |
| 260 | 230 | 3 | 2.5 | 907 | 1720 | 382034 | 2077134 | 39.5 | 670 | 850 |
180 | 250 | 185 | 2.5 | 2 | 1280 | 3400 | 382936 | - | 27.5 | 670 | 850 |
| 260 | 160 | 2.5 | 2 | 1140 | 2550 | 380636 | - | 26.7 | 670 | 850 |
200 | 282 | 206 | 3 | 2.5 | 1680 | 2510 | 380640 | - | 42.1 | 560 | 700 |
| 310 | 200 | 3 | 2.5 | 1660 | 3100 | 382040X2 | 2077140 | 55.6 | 560 | 700 |
| 310 | 275 | 3 | 2.5 | 1760 | 4200 | 382040 | 2077140 | 75.1 | 560 | 700 |
205 | 320 | 205 | 3 | 3 | 1590 | 3260 | 380641 | 77741 | 57 | 500 | 630 |
220 | 340 | 305 | 4 | 3 | 2070 | 5430 | 382044 | 2077144 | 97.9 | 500 | 630 |
225 | 320 | 230 | 2.5 | 2 | 1910 | 5000 | 380645 | 77745 | 58 | 500 | 630 |
230 | 315 | 190 | 2.5 | 2 | 1600 | 4310 | 380646 | 77746 | 42.5 | 500 | 630 |
240 | 360 | 310 | 4 | 3 | 2110 | 5610 | 382048 | 2077148 | 90.5 | 450 | 560 |
250 | 385 | 255 | 5 | 4 | 2870 | 6450 | 381050 | 77150 | 107 | 380 | 480 |
260 | 360 | 265 | 3 | 2.5 | 1760 | 5220 | 382952 | 2077952 | 76.3 | 450 | 560 |
| 400 | 255 | 4 | 7.5 | 2300 | 5000 | 380652 | 77752 | 114 | 490 | 600 |
| 400 | 345 | 5 | 4 | 2960 | 7380 | 382052 | 2077152 | 153 | 430 | 530 |
| 440 | 300 | 2 | 5 | 3550 | 8200 | 380152 | 777752 | 164 | 450 | 560 |
280 | 395 | 288 | 5 | 5 | 3051 | 8320 | 380656 | - | 108 | 450 | 560 |
| 420 | 250 | 5 | 5 | 2780 | 5700 | 380656X2 | 77756 | 119 | 450 | 560 |
| 460 | 324 | 5 | 4 | 2840 | 7290 | 381156 | 1077756 | 200 | 360 | 450 |
300 | 420 | 300 | 4 | 3 | 2330 | 7210 | 382960 | 2077960 | 130 | 380 | 480 |
| 420 | 310 | 4 | 3 | 3250 | 8150 | 380660 | 77860 | 134 | 380 | 480 |
| 460 | 390 | 5 | 4 | 3180 | 9330 | 382060 | 2077160 | 238 | 360 | 450 |
| 500 | 350 | 5 | 4 | 2980 | 6950 | 381160X2 | 77760 | 286 | 340 | 430 |
| 500 | 370 | 5 | 4 | 3390 | 8710 | 381160 | 1077760 | 285 | 340 | 430 |
320 | 460 | 338 | 4 | 4 | 2950 | 8200 | 380664 | 77764 | 180 | 360 | 450 |
| 460 | 380 | 4 | 4 | 3100 | 8750 | 380664X2 | 77864 | 218 | 360 | 450 |
| 480 | 390 | 5 | 4 | 3180 | 9330 | 382064 | 2077164 | 234 | 340 | 430 |
| 540 | 364 | 5 | 5 | 6330 | 14400 | 381164X2 | - | 347 | 340 | 430 |
340 | 460 | 310 | 4 | 3 | 2480 | 8100 | 382968 | 2077968 | 145 | 340 | 430 |
| 480 | 350 | 5 | 5 | 4400 | 12600 | 380668 | - | 195 | 320 | 400 |
| 520 | 325 | 5 | 4 | 3100 | 8620 | 381068 | 77168 | 234 | 320 | 400 |
| 580 | 425 | 5 | 4 | 4580 | 11700 | 381168 | 1077768 | 441 | 280 | 360 |
350 | 590 | 420 | 2 | 5 | 4700 | 9700 | 380670 | 77770 | 475 | 280 | 360 |
355 | 490 | 316 | 4 | 4 | 4520 | 12200 | 380671 | - | 115 | 320 | 400 |
Boundary dimensions | Basic load ratings | Designations | Mass | Limiting speeds | |||||||
mm | kN | Current | Original | kg | r/min | ||||||
d | D | T | rmin | r1min | Cr | Cor | Grease | Oil | |||
360 | 480 | 310 | 4 | 3 | 2760 | 8300 | 382972 | 2077972 | 149 | 340 | 430 |
| 480 | 375 | 3 | 3 | 3010 | 7870 | 382972X2 | 77872 | 189 | 340 | 430 |
| 520 | 370 | 4 | 4 | 5560 | 14600 | 380672 | - | 253 | 300 | 380 |
| 540 | 325 | 5 | 4 | 3388 | 8840 | 381072 | 77172 | 248 | 300 | 380 |
| 540 | 360 | 5 | 5 | 5070 | 12500 | 381072X2 | - | 274 | 300 | 380 |
| 600 | 420 | 6 | 6 | 7900 | 14000 | 381172 | 1077772 | 388 | 280 | 360 |
| 600 | 540 | 5 | 5 | 9970 | 24900 | 381172X2 | - | 620 | 240 | 360 |
370 | 490 | 292 | 3 | 3 | 3800 | 11600 | 380674 | - | 149 | 340 | 430 |
380 | 520 | 400 | 4 | 3 | 5560 | 16100 | 380676 | - | 240 | 280 | 380 |
| 550 | 350 | 5 | 5 | 5250 | 13100 | 380676 | 77776 | 273 | 280 | 380 |
| 560 | 325 | 5 | 4 | 3360 | 8840 | 381076 | 77176 | 281 | 280 | 380 |
| 560 | 360 | 5 | 5 | 5730 | 14000 | 381076X2 | - | 294 | 280 | 360 |
| 620 | 388 | 6 | 6 | 4200 | 9500 | 381176X2 | 3077776 | 443 | 240 | 360 |
| 620 | 420 | 5 | 4 | 4710 | 12300 | 381176 | 1077776 | 519 | 240 | 360 |
395 | 545 | 288.7 | 4 | 7.5 | 2610 | 7490 | 380679 | 77779 | 194 | 280 | 360 |
400 | 540 | 280 | 4 | 4 | 3100 | 8750 | 380680 | 77880 | 175 | 280 | 360 |
| 600 | 356 | 5 | 4 | 4160 | 10400 | 381080 | 77180 | 317 | 240 | 320 |
420 | 620 | 356 | 5 | 4 | 4160 | 10400 | 381084 | 77184 | 358 | 220 | 300 |
| 700 | 480 | 6 | 5 | 6780 | 18500 | 381184 | 1077784 | 760 | 190 | 260 |
| 760 | 500 | 7.5 | 7.5 | 9350 | 20300 | 380684 | 77884 | 1039 | 180 | 240 |
440 | 620 | 454 | 6 | 6 | 3960 | 7880 | 380688 | 77888 | 440 | 200 | 280 |
| 650 | 355 | 6 | 6 | 4290 | 12390 | 380088 | 77788 | 385 | 200 | 280 |
| 650 | 376 | 6 | 5 | 4330 | 13700 | 381088 | 77188 | 401 | 200 | 280 |
460 | 620 | 310 | 4 | 3 | 3360 | 10200 | 381992 | 1077992 | 232 | 200 | 280 |
| 650 | 474 | 6 | 6 | 5292 | 11270 | 380692 | 77892 | 495 | 180 | 240 |
| 680 | 410 | 6 | 5 | 5130 | 14200 | 381092 | 77192 | 476. | 180 | 240 |
| 730 | 440 | 4 | 7.5 | 6500 | 15100 | 380692X3 | 77792 | 694 | 170 | 220 |
475 | 660 | 450 | 5 | 5 | 7330 | 22400 | 380695 | 77795 | 457 | 170 | 220 |
480 | 650 | 338 | 5 | 4 | 2450 | 5400 | 381996 | 1077996 | 301 | 190 | 260 |
| 678 | 494 | 6 | 6 | 10600 | 31900 | 380696 | - | 578 | 170 | 220 |
| 700 | 342 | 6 | 6 | 7050 | 17900 | 381096X2 | - | 447 | 170 | 220 |
| 700 | 420 | 6 | 5 | 5780 | 16900 | 381096 | 77196 | 547 | 170 | 220 |
| 790 | 510 | 7.5 | 7.5 | 11570 | 26900 | 381196X2 | - | 1017 | 120 | 160 |
490 | 625 | 385 | 4 | 4 | 5070 | 17670 | 380698 | - | 282 | 170 | 220 |
500 | 720 | 420 | 6 | 5 | 6650 | 19400 | 3810/500 | 771/500 | 565 | 160 | 200 |
| 830 | 540 | 7.5 | 7.5 | 13230 | 33000 | 3811/500X2 | - | 1194 | 120 | 160 |
508 | 762 | 420 | 6 | 6 | 9050 | 23900 | 3806/508 | - | 684 | 160 | 200 |
520 | 735 | 535 | 6 | 6 | 10580 | 33400 | 3806/520 | - | 721 | 160 | 200 |
530 | 780 | 450 | 6 | 5 | 7520 | 21500 | 3810/530 | 771/530 | 744 | 140 | 180 |
| 870 | 560 | 7.5 | 7.5 | 14400 | 36150 | 3811/530X2 | - | 1342 | 120 | 160 |
| 870 | 590 | 7.5 | 6 | 9300 | 26100 | 3811/530 | 10777/530 | 1422 | 120 | 160 |
| 880 | 544 | 7.5 | 7.5 | 10500 | 25600 | 3806/530 | 30777/530 | 1350 | 120 | 160 |
540 | 690 | 400 | 5 | 5 | 4860 | 17300 | - | 779/540 | 375 | 160 | 200 |
560 | 730 | 410 | 4 | 6 | 5560 | 18900 | 3828/560X | - | 441 | 140 | 180 |
Boundary dimensions | Basic load ratings | Designations | Mass | Limiting speeds | |||||||
mm | kN | Current | Original | kg | r/min | ||||||
d | D | T | rmin | r1min | Cr | Cor | Grease | Oil | |||
560 | 750 | 368 | 5 | 4 | 4370 | 13300 | 3819/560 | 10779/560 | 456 | 140 | 180 |
| 920 | 620 | 7.5 | 6 | 11200 | 26100 | 3811/560 | 10777/560 | 1635 | 100 | 140 |
600 | 800 | 365 | 5 | 5 | 5000 | 17800 | - | 779/600 | 489 | 120 | 160 |
| 800 | 380 | 5 | 4 | 5500 | 18900 | 3819/600 | 10779/600 | 536 | 120 | 160 |
| 855 | 620 | 6 | 6 | 14700 | 48100 | 3806/600 | - | 1155 | 100 | 140 |
| 870 | 415 | 6 | 6 | 9790 | 27200 | 3810/600X2 | - | 831 | 100 | 140 |
| 870 | 480 | 6 | 5 | 8370 | 25400 | 3810/600 | 771/600 | 995 | 100 | 140 |
| 980 | 615 | 7.5 | 6 | 17600 | 45600 | 3811/600X2 | - | 1865 | 90 | 120 |
| 980 | 650 | 7.5 | 6 | 12700 | 36700 | 3811/600 | 10777/600 | 1970 | 90 | 120 |
625 | 815 | 480 | 5 | 5 | 10400 | 31700 | 3806/625 | 777/625 | 647 | 100 | 140 |
630 | 850 | 418 | 6 | 5 | 6440 | 19800 | 3819/630 | 10779/630 | 720 | 100 | 140 |
| 890 | 650 | 7.5 | 7.5 | 16970 | 53800 | 3806/630 | - | 1293 | 100 | 140 |
| 920 | 515 | 7.5 | 6 | 9170 | 26800 | 3810/630 | 771/630 | 1158 | 95 | 130 |
| 920 | 600 | 7.5 | 7.5 | 16500 | 48200 | 3810/630X2 | - | 1342 | 90 | 120 |
| 1030 | 645 | 7.5 | 7.5 | 20270 | 53160 | 3811/630X2 | - | 2162 | 85 | 110 |
| 1030 | 670 | 7.5 | 6 | 14400 | 39900 | 3811/630 | 10777/630 | 2170 | 85 | 110 |
650 | 1030 | 560 | 7.5 | 12 | 11460 | 22050 | 3806/650 | 777/650 | 1769 | 85 | 110 |
660 | 1070 | 650 | 7.5 | 7.5 | 12600 | 26500 | 3806/660 | 777/660 | 2282 | 80 | 100 |
670 | 900 | 412 | 6 | 5 | 6940 | 22300 | 3819/670 | 10779/670 | 959 | 95 | 130 |
| 950 | 700 | 7.5 | 7.5 | 19800 | 61900 | 3806/670 | - | 1599 | 90 | 120 |
| 980 | 475 | 7.5 | 7.5 | 13880 | 36500 | 3810/670X2 | - | 1224 | 90 | 120 |
| 1090 | 690 | 7.5 | 7.5 | 22700 | 58800 | 3811/670X2 | - | 2566 | 75 | 95 |
| 1090 | 710 | 7.5 | 6 | 15700 | 39900 | 3811/670 | 10777/670 | 2665 | 75 | 95 |
710 | 1030 | 490 | 7.5 | 7.5 | 14500 | 40600 | 3810/710X2 | - | 1372 | 75 | 95 |
| 1030 | 555 | 7.5 | 6 | 11200 | 35800 | 3810/710 | 771/710 | 1568 | 75 | 95 |
| 1150 | 710 | 9.5 | 8 | 24500 | 65000 | 3811/710X2 | - | 2931 | 48 | 80 |
| 1150 | 750 | 9.5 | 8 | 15840 | 33960 | 3811/710 | 10777/710 | 3227 | 48 | 80 |
730 | 1035 | 755 | 7.5 | 7.5 | 22500 | 73200 | 3806/730 | - | 2043 | 75 | 95 |
750 | 1090 | 515 | 7.5 | 6 | 16200 | 45600 | 3810/750X2 | - | 1619 | 70 | 90 |
| 1090 | 605 | 7.5 | 6 | 13100 | 42400 | 3810/750 | 771/750 | 1874 | 70 | 90 |
| 1130 | 690 | 7.5 | 7.5 | 19000 | 51700 | 3806/750 | 777/750 | 2516 | 48 | 80 |
| 1220 | 750 | 9.5 | 8 | 27430 | 7380 | 3811/750X2 | - | 3504 | 48 | 80 |
| 1220 | 840 | 9.5 | 8 | 21900 | 68000 | 3811/750 | 10777/750 | 3994 | 48 | 80 |
774 | 1130 | 690 | 4 | 7.5 | 16700 | 50100 | - | 777/774 | 2400 | 48 | 80 |
780 | 1220 | 840 | 9.5 | 8 | 28400 | 74000 | 3806/780 | 779/780 | 3659 | 48 | 80 |
800 | 1120 | 820 | 7.5 | 7.5 | 26200 | 86300 | 3806/800 | - | 2842 | - | - |
840 | 1170 | 840 | 7.5 | 7.5 | 26300 | 86400 | 3806/840 | - | 2840 | - | - |
850 | 1360 | 900 | 12 | 9.5 | 38900 | 140600 | 3811/850 | 10777/850 | 5168 | - | - |
950 | 1360 | 880 | 7.5 | 6 | 23300 | 83600 | 3820/950 | 20771/950 | 4087 | - | - |
1060 | 1500 | 1000 | 9.5 | 8 | 29100 | 105000 | 3820/1060 | 20771/1060 | 5698 | - | - |
1070 | 1400 | 889.762 | 4 | 12 | 27270 | 90000 | BT4B 328100 | - | 3730 | - | - |
1080 | 1450 | 950 | 5 | 12 | 30240 | 97200 | BT4B 331559 | - | 4450 | - | - |
1250 | 1550 | 890 | 5 | 12 | 27270 | 102600 | BT4B 328819 | - | 3820 | - | - |
1260 | 1640 | 1000 | 5 | 12 | 35190 | 128700 | BT4B 332124 | - | 5800 | - | - |
1300 | 1720 | 1040 | 5 | 12 | 38610 | 126000 | BT4B 331950 | - | 7000 | - | - |
1500 | 1900 | 1080 | 4 | 12 | 42120 | 153000 | BT4B 332078 | - | 7700 | - | - |
1580 | 1960 | 1080 | 5 | 12 | 41130 | 158400 | BT4B 331934 | - | 7800 | - | - |
