Deep groove ball bearings are commonly used in a number of applications as their simple structures and convenient using. They mainly carry radial loads, but also can carry combined loads as same as angular contact ball bearings when the radial clearance increases. They may carry pure axial loads when the speed is high and thrust ball bearings are not suitable. Comparing with other bearings, deep groove ball bearings have lower friction coefficient and higher limiting speed, but can not carry heavy loads.
Deep groove ball bearings commonly adopt ribbon steel pressed cages, and metal machined solid cages are often for large-size deep groove ball bearings.
Deep groove ball bearings are widely used in automotives, tractors, machine tools, generators, water-pumps,agriculture machinery, textile machinery,etc.

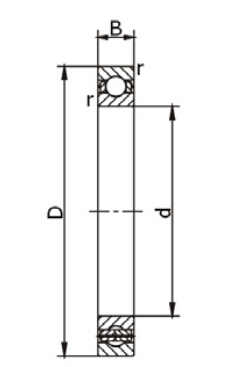

BounDary dimension | Basic load ratings | Designations | Mass | installation dimension | Limiting speeds | ||||||||
mm | kN | mm | r/min | ||||||||||
d | D | B | rmin | Cr | Cor | Current | Original | kg | damin | Damax | ramax | Grease | Oil |
150 | 190 | 20 | 1.1 | 49.1 | 58.5 | 6830 | 1000830 | 1.15 | 156.6 | 183.5 | 1 | 3000 | 3600 |
210 | 28 | 2 | 85 | 90.5 | 6930 | 1000930H | 2.59 | 159 | 201 | 2 | 2800 | 3400 | |
225 | 24 | 1.1 | 91.9 | 98.5 | 16030 | 7000130 | 3.62 | 156.5 | 218.5 | 1 | 2600 | 3000 | |
225 | 35 | 2.1 | 132 | 125 | 6030 | 130 | 4.24 | 161 | 214 | 2 | 2600 | 3000 | |
270 | 45 | 3 | 203 | 199 | 6230 | 230 | 10 | 163 | 257 | 2.5 | 1900 | 2500 | |
320 | 65 | 4 | 288 | 295 | 6330 | 330 | 22.7 | 166 | 304 | 3 | 1800 | 2300 | |
160 | 200 | 20 | 1.1 | 48.5 | 61 | 6832 | 1000832 | 1.23 | 166.5 | 193.5 | 1 | 2800 | 3400 |
220 | 28 | 2 | 87 | 96 | 6932 | 1000932H | 2.71 | 169 | 211 | 2 | 2600 | 3200 | |
240 | 25 | 1.5 | 99 | 108 | 16032 | 7000132 | 4.2 | 168 | 232 | 1.5 | 2400 | 3000 | |
240 | 38 | 2.1 | 145 | 138 | 6032 | 132 | 5.15 | 171 | 229 | 2 | 2400 | 3000 | |
290 | 48 | 3 | 215 | 218 | 6232 | 232H | 14.5 | 173 | 277 | 2.5 | 1900 | 2400 | |
340 | 68 | 4 | 313 | 340 | 6332 | 332 | 29 | 176 | 324 | 3 | 1800 | 2200 | |
170 | 215 | 22 | 1.1 | 61.5 | 78 | 6834 | 1000834 | 1.9 | 176.5 | 208.5 | 1 | 2600 | 3200 |
230 | 28 | 2 | 88.8 | 100 | 6934 | 1000934 | 2.85 | 179 | 221 | 2 | 2400 | 3000 | |
260 | 28 | 1.5 | 118 | 130 | 16034 | 7000134 | 5.71 | 178 | 252 | 1.5 | 2200 | 2800 | |
260 | 42 | 2.1 | 170 | 170 | 6034 | 134 | 6.89 | 181 | 249 | 2 | 2200 | 2800 | |
310 | 52 | 4 | 245 | 260 | 6234 | 234 | 15.8 | 186 | 294 | 3 | 1900 | 2400 | |
360 | 72 | 4 | 335 | 378 | 6334 | 334 | 36.6 | 286 | 344 | 3 | 1700 | 2000 | |
180 | 225 | 22 | 1.1 | 62.3 | 78.5 | 6836 | 1000836 | 1.72 | 186.5 | 218.5 | 1 | 2400 | 3000 |
250 | 33 | 2 | 119 | 133 | 6936 | 1000936H | 4.16 | 189 | 241 | 2 | 2200 | 2800 | |
260 | 34 | 2 | 140 | 147 | 61936X3 | 736 | 6.1 | 2100 | 2700 | ||||
280 | 31 | 2 | 145 | 157 | 16036 | 7000136 | 7.5 | 189 | 271 | 2 | 2000 | 2600 | |
280 | 46 | 2.1 | 188 | 198 | 6036 | 136 | 8.88 | 191 | 269 | 2 | 2000 | 2600 | |
320 | 52 | 4 | 262 | 285 | 6236 | 236 | 15.9 | 196 | 304 | 3 | 1800 | 2200 | |
380 | 75 | 4 | 355 | 405 | 6336 | 336 | 43.1 | 196 | 364 | 2 | 1600 | 2000 |
BounDary dimension | Basic load ratings | Designations | Mass | installation dimension | Limiting speeds | ||||||||
mm | kN | mm | r/min | ||||||||||
d | D | B | rmin | Cr | Cor | Current | Original | kg | damin | Damax | ramax | Grease | Oil |
190 | 240 | 24 | 1.5 | 75.1 | 93.5 | 6838 | 1000838H | 2.53 | 198 | 232 | 1.5 | 2200 | 2800 |
260 | 33 | 2 | 117 | 133 | 6938 | 1000938H | 5.18 | 199 | 251 | 2 | 2200 | 2800 | |
290 | 31 | 2 | 149 | 168 | 16038 | 7000138 | 7.78 | 199 | 281 | 2 | 2000 | 2600 | |
290 | 46 | 2.1 | 188 | 201 | 6038 | 138K1 | 9.39 | 201 | 279 | 2 | 2000 | 2600 | |
340 | 55 | 4 | 285 | 322 | 6238 | 238 | 22.3 | 206 | 324 | 3 | 1700 | 2000 | |
400 | 78 | 5 | 355 | 415 | 6338 | 338 | 49.7 | 210 | 380 | 4 | 1600 | 1900 | |
200 | 250 | 24 | 1.5 | 74 | 98 | 6840 | 1000840H | 2.67 | 208 | 242 | 1.5 | 2200 | 2800 |
280 | 38 | 2.1 | 149 | 168 | 6940 | 1000940H | 7.28 | 211 | 269 | 2 | 2000 | 2600 | |
310 | 34 | 2 | 167 | 191 | 16040 | 7000140 | 10 | 209 | 301 | 2 | 1900 | 2400 | |
310 | 51 | 2.1 | 207 | 226 | 6040 | 140 | 12 | 211 | 299 | 2 | 1900 | 2400 | |
360 | 58 | 4 | 288 | 332 | 6240 | 240 | 26.7 | 216 | 344 | 3 | 1700 | 2000 | |
420 | 80 | 5 | 380 | 445 | 6340 | 340 | 55.3 | 220 | 400 | 4 | 1500 | 1800 | |
220 | 270 | 24 | 1.5 | 76.5 | 97.8 | 6844 | 1000844H | 2.9 | 228 | 262 | 1.5 | 1900 | 2400 |
300 | 38 | 2.1 | 152 | 178 | 6944 | 1000944 | 7.88 | 231 | 289 | 2 | 1900 | 2400 | |
340 | 37 | 2.1 | 180 | 217 | 16044 | 7000144 | 13.1 | 231 | 329 | 2 | 1800 | 2200 | |
340 | 56 | 3 | 252 | 268 | 6044 | 144 | 18.6 | 233 | 327 | 2.5 | 1800 | 2200 | |
400 | 65 | 4 | 355 | 365 | 6244 | 244 | 37.4 | 236 | 384 | 3 | 1500 | 1800 | |
460 | 88 | 5 | 410 | 520 | 6344 | 344 | 73.9 | 240 | 440 | 4 | 1300 | 1600 | |
240 | 300 | 28 | 2 | 83.5 | 108 | 6848 | 1000848 | 4.48 | 249 | 291 | 2 | 1800 | 2200 |
320 | 38 | 2.1 | 154 | 190 | 61948M | 1000948H | 8.49 | 251 | 309 | 2 | 1800 | 2200 | |
360 | 37 | 2.1 | 196 | 243 | 16048 | 7000148 | 13.9 | 251 | 349 | 2 | 1700 | 2000 | |
360 | 56 | 3 | 270 | 292 | 6048 | 148 | 19.9 | 253 | 347 | 2.5 | 1700 | 2000 | |
440 | 72 | 4 | 358 | 467 | 6248 | 248 | 50.5 | 256 | 424 | 3 | 1300 | 1600 | |
500 | 95 | 5 | 470 | 625 | 6348 | 348 | 94.4 | 260 | 480 | 4 | 1100 | 1400 |
BounDary dimensious | Basic load ratings | Designations | Mass | installation dimension | Limiting speeds | ||||||||
mm | kN | mm | r/min | ||||||||||
d | D | B | rmin | Cr | Cor | Current | Original | kg | damin | Damax | ramax | Grease | Oil |
260 | 320 | 28 | 2 | 101 | 148 | 61852M | 1000852H | 4.84 | 269 | 311 | 2 | 1700 | 2000 |
360 | 46 | 2.1 | 210 | 268 | 61952M | 1000952H | 14 | 271 | 349 | 2 | 1600 | 1900 | |
400 | 44 | 3 | 237 | 310 | 16052 | 7000152 | 21.1 | 273 | 387 | 2.5 | 1500 | 1800 | |
400 | 65 | 4 | 291 | 375 | 6052M | 152H | 29.4 | 276 | 384 | 3 | 1500 | 1800 | |
480 | 80 | 5 | 400 | 540 | 6252 | 252 | 67 | 280 | 460 | 4 | 1100 | 1400 | |
540 | 102 | 6 | 505 | 710 | 6352 | 352 | 118 | 284 | 516 | 5 | 1000 | 1300 | |
280 | 350 | 33 | 2 | 133 | 191 | 61856 | 1000856 | 7.2 | 289 | 341 | 2 | 1600 | 1900 |
380 | 46 | 2.1 | 209 | 272 | 61956M | 1000956H | 15.1 | 291 | 369 | 2 | 1500 | 1800 | |
420 | 44 | 3 | 243 | 330 | 16056 | 7000156 | 22.7 | 293 | 407 | 2.5 | 1400 | 1700 | |
420 | 65 | 4 | 300 | 410 | 6056 | 156 | 31.2 | 296 | 404 | 3 | 1400 | 1700 | |
500 | 80 | 5 | 400 | 550 | 6256 | 256 | 70.4 | 300 | 480 | 4 | 1100 | 1400 | |
580 | 108 | 6 | 570 | 840 | 6356 | 356 | 144 | 304 | 556 | 5 | 950 | 1200 | |
300 | 360 | 25 | 2 | 105 | 166 | 60860X1 | 760 | 5.05 | 1500 | 1800 | |||
380 | 38 | 2.1 | 166 | 233 | 61860 | 1000860 | 10.3 | 311 | 369 | 2 | 1400 | 1700 | |
420 | 56 | 3 | 269 | 370 | 61960M | 1000960H | 23.9 | 313 | 407 | 2.5 | 1300 | 1600 | |
460 | 50 | 4 | 285 | 405 | 16060 | 7000160 | 31.5 | 316 | 447 | 3 | 1200 | 1500 | |
460 | 74 | 4 | 355 | 500 | 6060 | 160 | 44.2 | 316 | 447 | 3 | 1200 | 1500 | |
540 | 85 | 5 | 465 | 670 | 6260 | 260 | 87.8 | 320 | 520 | 4 | 1000 | 1300 | |
620 | 109 | 7.5 | 593 | 886 | 6320 | 320 | 169 | 332 | 588 | 6 | 800 | 1000 | |
320 | 400 | 38 | 2.1 | 168 | 244 | 61864 | 1000864 | 10.8 | 331 | 389 | 2 | 1300 | 1600 |
440 | 56 | 3 | 275 | 392 | 61964 | 1000964 | 25.3 | 333 | 427 | 2.5 | 1200 | 1500 | |
480 | 50 | 4 | 293 | 430 | 16064 | 7000164 | 33.2 | 336 | 464 | 3 | 1100 | 1400 |
BounDary dimensious | Basic load ratings | Designations | Mass | installation dimension | Limiting speeds | ||||||||
mm | kN | mm | r/min | ||||||||||
d | D | B | rmin | Cr | Cor | Current | Original | kg | damin | Damax | ramax | Grease | Oil |
320 | 480 | 74 | 4 | 390 | 570 | 6064 | 164 | 46.5 | 336 | 464 | 3 | 1100 | 1400 |
580 | 92 | 5 | 530 | 805 | 6264 | 264 | 111 | 340 | 560 | 4 | 950 | 1200 | |
340 | 420 | 38 | 2.1 | 175 | 265 | 61868 | 1000868 | 11.5 | 351 | 409 | 2 | 1200 | 1500 |
460 | 56 | 3 | 292 | 418 | 61968 | 1000968 | 26.6 | 353 | 447 | 2.5 | 1100 | 1400 | |
520 | 57 | 4 | 345 | 520 | 16068 | 7000168 | 45 | 356 | 507 | 3 | 1000 | 1300 | |
520 | 82 | 5 | 440 | 660 | 6068 | 168 | 62.3 | 360 | 500 | 4 | 1000 | 1300 | |
620 | 92 | 6 | 530 | 820 | 6268 | 268 | 129 | 364 | 596 | 5 | 900 | 1100 | |
360 | 440 | 38 | 2.1 | 192 | 290 | 61872 | 1000872 | 11.8 | 371 | 429 | 2 | 1100 | 1400 |
480 | 56 | 3 | 280 | 425 | 61972 | 1000972 | 27.9 | 373 | 467 | 2.5 | 1100 | 1400 | |
540 | 57 | 4 | 351 | 550 | 16072 | 7000172 | 49 | 376 | 527 | 3 | 1000 | 1300 | |
540 | 82 | 5 | 460 | 720 | 6072 | 172 | 65.3 | 380 | 520 | 4 | 1000 | 1300 | |
550 | 85 | 5 | 460 | 720 | 61072X3 | 872 | 72.6 | 380 | 530 | 4 | 1000 | 1300 | |
650 | 95 | 6 | 555 | 905 | 6272 | 272 | 145 | 384 | 626 | 4 | 750 | 950 | |
380 | 480 | 46 | 2.1 | 238 | 375 | 61876 | 1000876 | 19.5 | 391 | 469 | 2 | 1000 | 1300 |
520 | 44 | 3 | 256 | 390 | 16976 | 7000976 | 30.5 | 1000 | 1300 | ||||
520 | 65 | 4 | 325 | 510 | 61976 | 1000976 | 40 | 396 | 504 | 3 | 1000 | 1300 | |
560 | 57 | 4 | 377 | 620 | 16076 | 7000176 | 51 | 950 | 1200 | ||||
560 | 82 | 5 | 455 | 725 | 6076 | 176 | 68 | 404 | 656 | 5 | 950 | 1200 | |
400 | 500 | 46 | 2.1 | 241 | 390 | 61880 | 1000880 | 20.5 | 411 | 489 | 2 | 1000 | 1300 |
540 | 65 | 4 | 335 | 540 | 61980 | 1000980 | 42 | 416 | 524 | 3 | 950 | 1200 | |
600 | 90 | 5 | 510 | 825 | 6080 | 180 | 88.4 | 420 | 580 | 4 | 900 | 1100 | |
420 | 520 | 46 | 2.1 | 245 | 410 | 61884 | 1000884 | 21.4 | 431 | 509 | 2 | 950 | 1200 |
560 | 65 | 4 | 340 | 570 | 61984 | 1000984 | 43.6 | 436 | 544 | 3 | 900 | 1100 | |
620 | 90 | 5 | 530 | 895 | 6084 | 184 | 92.2 | 440 | 600 | 4 | 900 | 1100 | |
440 | 540 | 46 | 2.1 | 249 | 425 | 61888 | 1000888 | 22.3 | 451 | 529 | 2 | 900 | 1100 |
600 | 74 | 4 | 395 | 680 | 61988F3 | 1000988 | 60.2 | 456 | 584 | 3 | 900 | 1100 | |
650 | 94 | 6 | 550 | 965 | 6088 | 188 | 106 | 460 | 630 | 4 | 850 | 1000 |
BounDary dimensious | Basic load ratings | Designations | Mass | installation dimension | Limiting speeds | ||||||||
mm | kN | Current | Original | kg | mm | r/min | |||||||
d | D | B | rmin | Cr | Cor | Current | Original | damin | Damax | ramax | Grease | Oil | |
460 | 580 | 56 | 3 | 310 | 550 | 61892 | 1000892 | 34.3 | 473 | 567 | 2.5 | 900 | 1100 |
620 | 74 | 4 | 405 | 720 | 61992 | 1000992 | 62.6 | 476 | 604 | 3 | 850 | 1000 | |
680 | 100 | 6 | 605 | 1080 | 6092 | 192 | 123 | 480 | 660 | 4 | 800 | 950 | |
480 | 600 | 56 | 3 | 315 | 575 | 61896 | 1000896 | 35.4 | 493 | 587 | 2.5 | 850 | 1000 |
650 | 78 | 5 | 450 | 815 | 61996 | 1000996 | 73.5 | 500 | 630 | 4 | 800 | 950 | |
700 | 100 | 6 | 605 | 1090 | 6096 | 196 | 127 | 500 | 680 | 4 | 750 | 900 | |
500 | 620 | 56 | 3 | 320 | 600 | 618/500 | 10008/500 | 37.2 | 513 | 607 | 2.5 | 800 | 950 |
670 | 78 | 5 | 460 | 865 | 619/500 | 10009/500 | 82 | 520 | 650 | 4 | 750 | 900 | |
720 | 100 | 6 | 630 | 1170 | 60/500 | 1/500 | 131 | 524 | 696 | 5 | 750 | 900 | |
530 | 650 | 56 | 3 | 325 | 625 | 618/530 | 10008/530 | 39.8 | 543 | 637 | 2.5 | 750 | 900 |
710 | 82 | 5 | 455 | 870 | 619/530 | 10009/530 | 89.8 | 550 | 690 | 4 | 750 | 900 | |
780 | 112 | 6 | 680 | 1300 | 60/530 | 1/530 | 184 | 554 | 756 | 5 | 700 | 850 | |
560 | 680 | 56 | 3 | 330 | 650 | 618/560 | 10008/560 | 41.5 | 573 | 667 | 2.5 | 700 | 850 |
750 | 85 | 5 | 525 | 1040 | 619/560 | 10009/560 | 105 | 580 | 730 | 4 | 670 | 800 | |
600 | 730 | 60 | 3 | 355 | 735 | 618/600 | 10008/600 | 50.9 | 613 | 717 | 2.5 | 670 | 800 |
800 | 90 | 5 | 550 | 1160 | 619/600 | 10009/600 | 120 | 620 | 780 | 4 | 630 | 750 | |
870 | 118 | 6 | 790 | 1640 | 60/600 | 1/600 | 236 | 624 | 846 | 5 | 600 | 700 | |
630 | 780 | 69 | 4 | 420 | 890 | 618/630 | 10008/630 | 71.3 | 646 | 767 | 3 | 630 | 750 |
850 | 100 | 6 | 625 | 1350 | 619/630 | 10009/630 | 163 | 654 | 826 | 5 | 600 | 700 | |
920 | 128 | 7.5 | 750 | 1620 | 60/630N1 | 1/630K | 285 | 662 | 888 | 6 | 560 | 670 | |
670 | 820 | 69 | 4 | 435 | 965 | 618/670 | 10008/670 | 75.4 | 686 | 807 | 3 | 560 | 670 |
900 | 103 | 6 | 675 | 1460 | 619/670 | 10009/670 | 181 | 694 | 876 | 5 | 530 | 630 | |
980 | 136 | 7.5 | 765 | 1730 | 60/670 | 1/670 | 351 | 702 | 948 | 6 | 500 | 600 | |
710 | 870 | 74 | 4 | 480 | 1100 | 618/710 | 10008/710 | 92.6 | 726 | 854 | 3 | 530 | 630 |
950 | 106 | 6 | 715 | 1640 | 619/710 | 10009/710 | 220 | 734 | 926 | 5 | 500 | 600 | |
1030 | 140 | 7.5 | 1020 | 2310 | 60/710 | 1/710 | 386 | 742 | 998 | 6 | 480 | 560 |
BounDary dimensious | Basic load ratings | Designations | Mass | installation dimension | Limiting speeds | ||||||||
mm | kN | mm | r/min | ||||||||||
D | D | B | rmin | Cr | Cor | Current | Original | kg | damin | Damax | ramax | Grease | Oil |
750 | 920 | 78 | 5 | 525 | 1260 | 618/750 | 10008/750 | 110 | 770 | 900 | 4 | 500 | 600 |
1000 | 112 | 6 | 785 | 1840 | 619/750 | 10009/750 | 245 | 774 | 976 | 5 | 480 | 560 | |
1090 | 150 | 7.5 | 995 | 2360 | 60/750 | 1/750 | 485 | 782 | 1058 | 6 | 450 | 530 | |
800 | 980 | 82 | 5 | 530 | 1310 | 618/800 | 10008/800 | 132 | 820 | 960 | 4 | 450 | 530 |
1060 | 115 | 6 | 825 | 2050 | 619/800 | 10009/800 | 275 | 824 | 1036 | 5 | 430 | 500 | |
850 | 1150 | 110 | 10 | 1270 | 3860 | 618/850X3 | 3707/850 | 140 | 904 | 1096 | 10 | 430 | 500 |
900 | 1090 | 85 | 5 | 618 | 1532 | 618/900 | 10008/900 | 160 | 920 | 1070 | 4 | 380 | 450 |
1000 | 1220 | 100 | 6 | 637 | 1250 | 618/1000 | 10008/1000 | 245 | 1024 | 1196 | 5 | 340 | 400 |
1060 | 1280 | 100 | 6 | 728 | 1500 | 618/1060 | 10008/1060 | 260 | 1084 | 1256 | 5 | 300 | 360 |
1120 | 1360 | 106 | 6 | 765 | 1960 | 618/1120 | 10008/1120 | 315 | 1144 | 1336 | 5 | - | - |
1140 | 1380 | 106 | 6 | 858 | 2390 | 618/1140 | 10008/1140 | 324 | - | - | |||
1180 | 1420 | 106 | 6 | 792 | 2210 | 618/1180 | 10008/1180 | 342 | 1204 | 1396 | 5 | 260 | 320 |
1250 | 1500 | 112 | 3 | 927 | 2670 | 618/1250 | 10008/1250 | 178 | 1274 | 1476 | 5 | ||
1320 | 1600 | 122 | 6 | 956 | 2350 | 618/1320 | 10008/1320 | 500 | 1344 | 1576 | 5 | 190 | 240 |
1400 | 1700 | 132 | 7.5 | 1120 | 2750 | 618/1400 | 10008/1400 | 615 | 1432 | 1688 | 6 | 190 | 240 |
