Double row angular contact ball bearings

The design of double row angular contact ball bearing is almost totally same as that of the single row angular contact ball bearing. However, its axial dimension is relatively small.So,the double row angular contact ball bearings can be considered to a pair of back-to-back single row bearings. It can bear axial loads in two directions as well as torques.

Double row angular contact ball bearings usually have fitting solt, the side of the raceway without fitting solt must carry main loads when bearings are in use.

Please kindly post your comments,we will attach great importance to it,and give our reply quickly.Thank you.

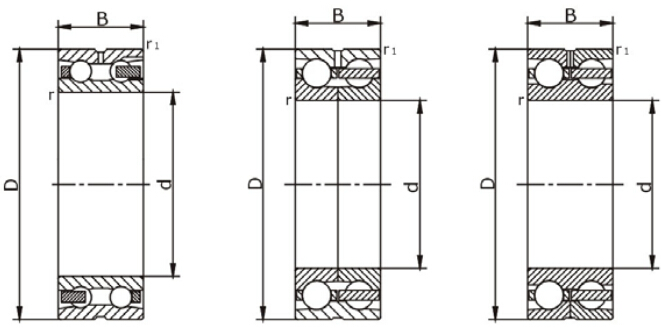

Double-row angular contact ball bearings.jpg

Boundary dimensions					Basic load ratings		Designations		Mass	Installation dimersion				Limiting
mm					kN		Current	Original	kg	mm				r/min
d	D	B	rmin	r1min	Cr	Cor	Current	Original	kg	damin	Damax	ramax	rbmax	Grease	oil
150	190	20	1.1	0.6	53.5	74.5	71830AC	-	1.32	157	180	1	0.6	2400	3400
	210	28	2	1	90	120	71930AC	-	3	160	200	2	1	2400	3400
	225	35	2.1	1.1	153	130	7030 AC	46130	4.83	162	213	2	1	2000	3000
	270	45	3	1.1	241	218	7230 AC	46230	12.1	164	256	2.5	1	1800	2600
	320	65	4	1.5	360	375	7330 AC	46330	25.8	168	302	3	1.5	1700	2400
	320	65	4	1.5	310	310	7330 B	66330	25.8	168	302	3	1.5	1600	2200
160	240	38	2.1	1.1	161	139	7032 AC	46132	5.81	172	228	2	1	2000	3000
	279	40	2.1	1.1	204	182	-	46932	11.6					2000	2800
	290	48	3	1.1	262	247	7232 C	36232	14.5	174	283	2.5	1	1800	2600
	290	48	3	1.1	249	232	7232 AC	46232	14.5	174	276	2.5	1	1700	2400
170	215	22	1.1	0.6	80	110	71834C	-	2					2000	2800
	230	28	2	1	110	140	71934C	-	3.3	180	220	2	1	2000	3000
	260	42	2.1	1.1	193	171	7034 AC	46134	8.25	182	248	2	1	2000	2800
	310	52	4	1.5	282	275	7234 AC	46234	17.4	188	292	3	1.5	1600	2200
	310	52	4	1.5	320	325	7234 C	36234	17.2	188	292	3	1.5	1700	2400
180	280	46	2.1	1.1	194	230	7036 AC	46136	9.8	192	268	2	1	1600	2200
	320	52	4	1.5	335	345	7236 C	36236	18.1	198	302	3	1.5	1500	2000
	320	52	4	1.5	315	325	7236 AC	46236	18.1	198	302	3	1.5	1500	2000
	380	75	4	1.5	405	445	7336 B	66336	37	198	362	3	1	1300	1800
190	260	33	2	1	139	177	71938 AC	1046938	4.45	200	250	2	1	1800	2200
	290	46	2.1	1.1	214	200	7038 AC	46138	10.7	202	278	2	1	1600	2200
	340	55	4	1.5	280	370	7238B	-	23	208	322	3	1	1500	2000
200	250	24	1.5	1	90	130	71840C	-	2.5	208.5	241.5	1.5	1	1800	2200

Boundary dimensions					Basic load ratings		Designations		Mass	Installation dimersion				Limiting
mm					kN		Current	Original	kg	mm				r/min
d	D	B	rmin	r1min	Cr	Cor	Current	Original	kg	damin	Damax	ramax	rbmax	Grease	oil
200	280	38	2.1	1.1	150	210	71940AC	-	7.1	212	268	2	1	1600	2200
	310	51	2.1	1.1	253	248	7040 AC	46140	14	212	298	2	1	1500	2000
	360	58	4	1.5	375	410	7240 C	36240	25.2	218	342	3	1.5	1400	1900
	360	58	4	1.5	355	385	7240 AC	46240	25.2	218	342	3	1.5	1300	1800
	360	58	4	1.5	310	325	7240 B	66240	25.8	218	342	3	1.5	1200	1700
210	240	15	1.1	1.1	30	50	70842X3	-	1	222	287	2	1	1800	2200
220	300	38	2.1	1.1	200	250	71944AC	-	7.2	232	288	2	1	1800	2200
	400	65	4	1.5	358	482	7244 AC	46244	38.5					1100	1600
240	320	38	2.1	1.1	203	285	71948 C	1036948	8.37	252	308	2	1	1200	1700
	320	38	2.1	1.1	181	260	71948 AC	1046948	8.37	252	308	2	1	1100	1600
	320	38	2.1	1.1	161	233	71948 B	1066948	8.43	252	308	2	1	1000	1500
	320	48	2.1	1.1	184	190	72948 AC	2046948	10	252	308	2	1	1100	1600
	440	72	4	1.5	420	490	7248 B	66248	50.9	258	422	3	1.5	1000	1500
260	320	28	2	1	127	190	71852 AC	1046852	4.85	270	310	2	1	1400	1900
	360	46	2.1	1.1	242	345	71952 AC	1046952	13.5	272	348	2	1	1300	1800
	400	65	4	1.5	291	431	7052 B	66152	28.5	278	382	3	1.5	1000	1500
	480	80	5	2	456	702	7252 B	66252	66					900	1300
280	350	33	2	1	140	216	71856 AC	1046856	7.2	290	340	2	1	1200	1700
	380	46	2.1	1.1	226	337	71956 AC	1046956	15	292	368	2	1	1100	1600
	420	65	4	1.5	287	450	7056 B	66156	30	298	402	3	1.5	900	1400
320	400	38	2.1	1.1	190	290	71864	-	10	332	388	2	1	800	1000
	440	56	3	1.1	350	550	71964	-	25.5	334	426	2.5	1	800	1000
340	460	56	3	1.1	292	510	71968 B	1066968	27.5	354	446	2.5	1	800	1000
	520	82	5	2	410	700	7068B	66168	63	362	498	4	2	800	1000
360	480	56	3	1.1	350	600	71972	-	29	374	466	2.5	1	800	1000

Boundary dimensionsLimiting					Basic load ratings		Designations		Mass	Installation dimersion				Limiting
mm					kN		Current	Original	kg	mm				r/min
d	D	B	rmin	r1min	Cr	Cor	Current	Original	kg	damin	Damax	ramax	rbmax	Grease	oil
360	540	82	5	2	530	960	7072 C	36172	62.4	382	518	4	2	800	1000
	540	82	5	2	468	855	7072 AC	46172	62.5	382	518	4	2	850	1200
	650	95	6	3	585	1125	7272 B	66272	145					700	950
380	440	25	3	1.1	110	178	7676 B	66776	7.1					960	1200
	480	31	2	1	171	310.5	70876 AC	7046876	13.5					850	1200
	480	46	2.1	1.1	261.9	450	71876 AC	1046876	18	392	468	2	1	1700	2400
	520	65	4	1.5	369	661.5	71976 AC	1046976	40.5					850	1200
	520	82	4	1.5	407	733	72976 AC	2046976	48.9					700	900
	560	82	5	2	456	855	7076 AC	46176	65.5	402	528	4	2	800	1100
	560	82	5	2	421	792	7076 B	66176	65.5	402	528	4	2	750	1000
400	540	65	4	1.5	380.7	702	71980 AC	1046980	42					800	1100
	600	90	5	2	544.5	1062	7080 AC	46180	90.5					750	1000
	600	90	5	2	474	918	7080 B	66180	90.5					700	950
	720	103	6	3	656.2	1350	7280 B	66280	190					600	800
420	560	65	4	1.5	380.7	720	71984 AC	1046984	44.5	434	546	2.5	1	750	1000
	560	65	4	1.5	327	603	71984 B	1066984	44.5	434	546	2.5	1	700	950
	620	90	5	2	544.5	1062	7084 AC	46184	95					750	1000
	620	90	5	2	486	954	7084 B	66184	95					670	900
440	600	74	4	3	456.3	936	71988 AC	1046988	61					750	1000
	650	94	6	3	585	1186	7088 AC	46188	100					700	950
	650	94	6	3	514	1060	7088 B	66188	100	468	622	5	2.5	630	850
460	540	35	2.1	1.5	280	520	S7692	6792	14	472	528	2.5	1	750	1000
	580	37	2.1	1	230	504	70892 AC	7046892	24.5	474	566	2.5	1	750	1000
	580	56	3	3	334	689	71892 AC	1046892	34.5	474	566	2.5	1	750	1000
	620	74	4	1.5	456	936	71992 AC	1046992	58					850	1200

Boundary dimensions					Basic load ratings		Designations		Mass	Installation dimersion				Limiting
mm					kN		Current	Original	kg	mm				r/min
d	D	B	rmin	r1min	Cr	Cor	Current	Original	kg	damin	Damax	ramax	rbmax	Grease	oil
480	600	56	3	1.1	415	820	71896	-	35.5	494	686	2.5	1	850	1200
	700	100	6	3	632	1377	7096 AC	46196	125	508	672	5	2.5	630	850
	700	100	6	3	561	1200	7096 B	66196	125	508	672	5	2.5	560	750
500	620	37	2.1	1.1	248	558	708/500 AC	70468/500	27	514	606	2.5	1	670	900
	620	56	3	1.1	351	765	718/500 AC	10468/500	38	514	606	2.5	1	670	900
	670	78	5	2	498	1098	719/500 AC	10469/500	78	520	650	4	2	630	850
	720	100	6	3	644	1440	70/500 AC	461/500	130	528	692	5	2.5	600	800
	720	100	6	3	573	1260	70/500 B	661/500	130	528	692	5	2.5	560	750
508	600	30	2.1	1.5	150	320	76/508	-	16.5					670	900
530	650	56	3	1.1	369	837	718/530 AC	10468/530	39.5	544	636	2.5	1	1100	1600
	650	56	3	1.1	351	810	718/530 B	10668/530	39.5	544	636	2.5	1	630	850
	710	82	5	2	556	1206	719/530 AC	10469/530	92	552	688	4	2.1	1000	1500
	760	100	6	6	680	1500	307368B	-	150	558	732	5	2.5	560	750
	780	112	6	3	813	1944	70/530 AC	461/530	175	558	752	5	2.5	560	750
	780	112	6	3	666	1530	70/530 B	661/530	175	558	752	5	2.5	500	670
560	680	56	3	1.1	341	837	718/560 AC	10468/560	41.5	574	666	2.5	1	600	800
	750	85	5	2	533	1161	719/560 AC	10469/560	105	582	728	4	2	560	750
	820	115	6	3	814	1944	70/560 AC	461/560	195	588	792	5	2.5	530	700
600	730	42	3	1.1	304	662	708/600 AC	70468/600	38.5	614	716	2.5	1	560	750
	730	60	3	1.1	421	1044	718/600 AC	10468/600	47	614	716	2.5	1	560	750
	800	90	5	2	644	1557	719/600 AC	10469/600	125	622	778	4	2	900	1300
	870	118	6	3	796	1944	70/600 AC	461/600	230	628	842	5	2.5	480	630
670	820	69	4	1.5	498	1161	718/670 AC	10468/670	77	668	802	3	1.5	850	1200
	980	136	7.5	4	1053	2790	70/670 AC	461/670	340	706	944	6	3	430	560

Boundary dimensions					Basic load ratings		Designations		Mass	Installation dimersion				Limiting
mm					kN		Current	Original	kg	mm				r/min
d	D	B	rmin	r1min	Cr	Cor	Current	Original	kg	damin	Damax	ramax	rbmax	Grease	oil
710	870	74	4	1.5	546	1467	718/710 AC	10468/710	93.5	728	852	3	1.5	800	1100
	950	106	6	3	767	1980	719/710 AC	10469/710	195	738	922	5	2.5	800	1100
	1030	140	7.5	4	1071	2925	70/710 AC	461/710	370	746	944	6	3	400	530
750	920	78	5	2	585	1620	718/750 AC	10468/750	110	772	898	4	2	400	530
	1090	150	7.5	4	1170	3285	70/750 AC	461/750	445	782	1054	6	3	360	480
800	1150	155	7.5	4	1197	3420	70/800 AC	461/800	500	836	1114	6	3	340	450
850	1030	82	5	2	620	1674	718/850 AC	10468/850	140	872	1008	4	2	340	450
	1220	165	7.5	4	1377	4185	70/850 AC	461/850	595	886	1184	6	3	300	400
900	1180	122	6	3	940	2670	719/900	-	350					300	400
	1280	170	7.5	4	1404	4410	70/900 AC	461/900	665	936	1244	6	3	280	380
950	1360	180	7.5	4	1467	4680	70/950 AC	461/950	805	986	1324	6	3	240	340
980	1100	60	4	2	515	1450	719/980X1	-	65.6					240	340
1000	1220	100	6	3	831	2475	718/1000 AC	10468/1000	245	1028	1192	5	2.5	260	360
	1420	185	7.5	4	1467	4860	70/1000 AC	461/1000	890	1036	1384	6	3	220	320
1060	1500	195	9.5	5	1512	5130	70/1060 AC	461/1060	1050	1104	1456	8	4	200	300
1120	1360	106	6	3	954	3375	718/1120 AC	10468/1120	320	1148	1322	5	2.5	200	300
	1580	200	9.5	5	1548	5265	70/1120 AC	461/1120	1150	1164	1536	8	4	190	280
1140	1380	106	6	3	1180	3830	718/1140AC	10468/1140	318					190	280
1180	1660	212	9.5	5	1566	5580	70/1180 AC	461/1180	1350	1224	1616	8	4	170	240
1250	1500	80	6	3	725	2430	708/1250 AC	70468/1250	295	1278	1472	5	2.5	180	260
	1500	112	6	3	1026	3510	718/1250 AC	10468/1250	390	1278	1472	5	2.5	180	260
	1750	218	9.5	5	1602	5895	70/1250 AC	461/1250	1600	1294	1706	8	4	160	220
