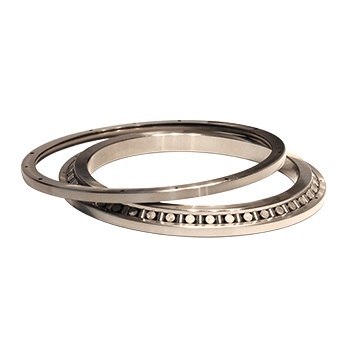

HXR/JXR Crossed Tapered Roller Bearings

Crossed Tapered Roller Bearings

HXR/JXR Crossed Tapered Roller Bearings

Inner Diameter: 203.2-1549.4mm
Outer Diameter: 279.4-1828.8mm
Width: 31.75-114.3mm
Weight: 6.5-500kg

Details DocumentsCatalog Comments

Bearing characteristics:

1. High precision: precision at P4, P4, P2.

2. High rigidity: these series bearings are with preload.

3. High load capacity: can support radial load, axial load, and tilting load.

4. High speed: rollers rolling in the raceway, so the limited speed of crossed taper roller bearings is higher than that of crossed cylindrical roller bearings.

5. Low friction: the frictional torque of crossed taper roller bearings is much lower than that of crossed cylindrical roller bearings.

Products Class of This Type

HRA Crossed Roller Bearings HRB Crossed Roller Bearings HRE Crossed Roller Bearings HRU Crossed Roller Bearings HSX Crossed Roller Bearings HXSU Crossed Roller Bearings HCRB/HCRBC Crossed Roller Bearings HCRBH Crossed Roller Bearings HXU Crossed Roller Bearings

Please kindly post your comments,we will attach great importance to it,and give our reply quickly.Thank you.

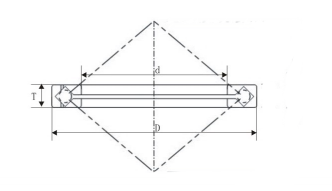

Model Number	Main dimensions				Basic dynamic load rating		Limiting speed (Oil) &n;r/m	Weight (Kg)
Model Number	Inner ring (mm)	Outer ring D(mm)	Width B(mm)	Chamfer r(min)	Radial Cr(KN)	Axial Ca(KN)	Limiting speed (Oil) &n;r/m	Weight (Kg)
HXR496051	203.2	279.4	31.75	1.5	41	49.2	800	6.5
HXR678052	330.2	457.2	63.5	3	80	98.4	620	35
HXR766051	457.2	609.6	63.5	3	106	133	520	51
HXR820060	580	760	80	5	106	209	300	100
HXR855053	685.8	914.4	79.375	3	180	224	260	150
HXR882055	901.7	1117.6	82.55	3	225	297	200	185
HXR889058	1028.7	1327.15	114.3	3	283	374	160	400
HXR897051	1549.4	1828.8	101.6	3	326	489	80	500
HJXR637050	300	400	37	1.5	47.2	60	720	13
HJXR652050	310	425	45	2.5	61.6	76.5	640	20
HJXR699050	370	495	50	3	70.2	89.2	600	30
