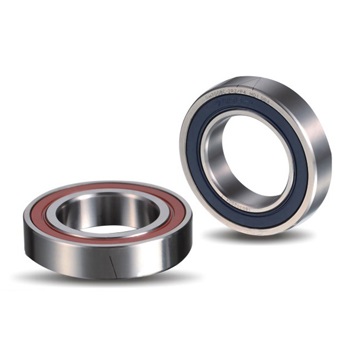

Sealed Ultra-high Speed Angular Contact Bearing SH70 Series

Precision Angular Contact Ball Bearing

The Ultra-high Speed Angular Contact Bearing through the internal structure optimization design, the high speed rolling body friction coefficient, sliding state to a minimum, so that it can achieve ultra-high speed, ring double slope structure design, increase the internal space, can be effectively lubricated.

Details Specifications Comments

Sealed ultra-high Speed Angular Contact Bearing SH70 series

Features: The super high speed bearing through the internal structure optimization design, the high speed rolling body friction coefficient, sliding state to a minimum, so that it can achieve ultra-high speed, ring double slope structure design, increase the internal space, can be effectively lubricated.

CHG can produce SH70 series bearing as below:

1. SH70 series, contact angle:15°

2. Ball material: steel ball (no mark), Ceramic ball (HQ1)

3. Cage: outer ring Guide phenolic resin cage (unmarked),Roll body guided polyamide resin cage (TN1)

4. Can use ceramic ball to obtain higher speed, higher life

Please kindly post your comments,we will attach great importance to it,and give our reply quickly.Thank you.

Bearing Type	Size （mm）					Basic Load Rating （kN）		Steel Balls Limit Speed （r/min）	Ceramic Balls Limit Speed （r/min）	Weight （kg）
Bearing Type	d	D	B	r （min）	r1 （min）	Ca	Coa	Grease Lubrication		Steel Balls	Ceramic Balls
SH708C-2RZ	8	22	7	0.3	0.15	1.90	0.92	80000	130000	0.010	0.009
SH7000C-2RZ	10	26	8	0.3	0.15	2.30	1.20	67000	110000	0.017	0.015
SH7001C-2RZ	12	28	8	0.3	0.15	2.45	1.30	60000	100000	0.019	0.017
SH7002C-2RZ	15	32	9	0.3	0.15	2.80	1.600	51000	85000	0.031	0.026
SH7003C-2RZ	17	35	10	0.3	0.15	4.20	2.50	46000	77000	0.042	0.037
SH7004C-2RZ	20	42	12	0.6	0.15	4.50	2.80	39000	64000	0.073	0.065
SH7005C-2RZ	25	47	12	0.6	0.15	6.30	4.10	33000	55500	0.082	0.072
SH7006C-2RZ	30	55	13	1.0	0.30	8.30	5.60	28000	47000	0.112	0.102
SH7007C-2RZ	35	62	14	1.0	0.30	10.00	7.10	25000	41000	0.153	0.139
SH7008C-2RZ	40	68	15	1.0	0.30	10.40	7.80	22000	37000	0.189	0.178
SH7009C-2RZ	45	75	16	1.0	0.30	10.80	8.90	20000	33000	0.254	0.237
SH7010C-2RZ	50	80	16	1.0	0.30	16.40	12.60	18000	30000	0.260	0.250
SH7011C-2RZ	55	90	18	1.0	0.30	17.20	13.90	16000	27000	0.380	0.350
SH7012C-2RZ	60	95	18	1.1	0.60	18.00	15.00	15000	26000	0.410	0.380
SH7013C-2RZ	65	100	18	1.1	0.60	26.50	21.30	14500	24000	0.450	0.420
SH7014C-2RZ	70	110	20	1.1	0.60	27.50	23.50	13000	22000	0.590	0.540
SH7015C-2RZ	75	115	20	1.1	0.60	28.30	24.50	12500	21000	0.690	0.620
SH7016C-2RZ	80	125	22	1.1	0.60	30.20	27.80	11500	19500	0.900	0.830
SH7017C-2RZ	85	130	22	1.1	0.60	32.90	29.70	11000	18500	0.920	0.840
SH7018C-2RZ	90	140	24	1.5	0.60	36.50	34.50	10500	17000	1.210	1.100
SH7019C-2RZ	95	145	24	1.5	0.60	42.00	38.80	10000	16500	1.270	1.120
SH7020C-2RZ	100	150	24	1.5	1.00	43.90	42.00	9600	16000	1.330	1.150
