Home >  Products > Precision Angular Contact Ball Bearing > Precision Angular Contact Bearing 70 Series

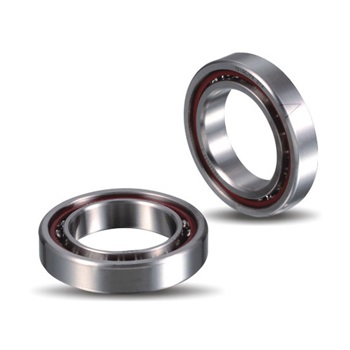

Precision Angular Contact Bearing 70 Series
Precision Angular Contact Ball Bearing

Precision Angular Contact Bearing Features: Non-contact sealing ring on both sides, large steel ball is used to make the bearing have greater rigidity and carrying capacity.


Details Specifications Comments

Precision Angular Contact Bearing Features:

Non-contact sealing ring on both sides, large steel ball is used to make the bearing have greater rigidity and carrying capacity.

1. 70 series, contact angle C is 15°,contact angle AC is 25°

2. Cage: outer ring Guide phenolic resin cage

3. Rolling body: Steel ball, Ceramic ball (HQ1)

4. Since the inner outer ring is a single-stall edge, the inner space of the bearing is increased, which is beneficial for storing a more lubricant, improving the lubrication performance of the bearing and prolonging the service life of the bearing.

5. Can use ceramic ball to obtain higher speed, higher life

Please kindly post your comments,we will attach great importance to it,and give our reply quickly.Thank you.
Bearing
Type		Size
（mm）		Basic
Load
Rating
（kN）		Steel
Balls
Limit
Speed
（r/min）		Weight
（kg）
dDBr
（min）		r1
（min）		CaCoaGrease LubricationSteel Balls
708C82270.30 0.150 4.10 2.10 530000.010
708AC82270.30 0.150 4.00 2.00 430000.011
7000C102680.30 0.150 4.77 2.24 450000.021
7000AC102680.30 0.150 4.63 2.16 360000.022
7001C122880.30 0.150 5.22 2.16 400000.023
7001AC122880.30 0.150 5.04 2.51 320000.024
7002C153290.30 0.150 5.62 3.06 340000.030
7002AC153290.30 0.150 5.34 2.93 272000.031
7003C1735100.30 0.150 5.94 2.93 310000.040
7003AC1735100.30 0.150 5.67 3.29 248000.042
7004C2042120.60 0.150 9.99 5.90 260000.065
7004AC2042120.60 0.150 9.54 5.63 208000.067
7005C2547120.60 0.150 10.53 6.66 220000.076
7005AC2547120.60 0.150 9.99 6.39 176000.078
7006C3055131.00 0.300 13.59 9.27 190000.110
7006AC3055131.00 0.300 12.96 8.82 152000.112
7007C3562141.00 0.300 17.19 12.33 165000.140
7007AC3562141.00 0.300 16.38 11.70 132000.142
7008C4068151.00 0.300 18.54 14.31 150000.175
7008AC4068151.00 0.300 17.55 13.59 120000.177
7009C4575161.00 0.300 21.96 17.37 136000.245
7009AC4575161.00 0.300 20.79 16.47 108000.248
7010C5080161.00 0.300 26.00 21.90 120000.260
7010AC5080161.00 0.300 24.60 20.80 96000.262
7011C5590181.00 0.300 30.60 25.74 110000.370
7011AC5590181.00 0.300 29.25 24.48 88000.373
7012C6095181.10 0.600 31.50 27.45 100000.405
7012AC6095181.10 0.600 29.70 26.19 80000.408
7013C65100181.10 0.600 33.30 31.05 96000.450
7013AC65100181.10 0.600 31.50 29.25 76800.454
7014C70110201.10 0.600 42.30 38.70 88000.560
7014AC70110201.10 0.600 40.05 36.90 70400.565
7015C75115201.10 0.600 43.20 40.95 84000.663
7015AC75115201.10 0.600 40.95 39.15 67200.672
7016A80125221.10 0.600 53.65 49.95 78000.860
7016AC80125221.10 0.600 49.95 46.65 62400.890
7017C85130221.10 0.600 54.00 53.30 74000.900
7017AC85130221.10 0.600 51.30 50.60 59200.913
7018C90140241.50 0.600 64.35 62.10 70001.150
7018AC90140241.50 0.600 61.20 58.95 56001.203
7019C95145241.50 0.600 66.15 65.70 67001.212
7019AC95145241.50 0.600 62.55 62.55 53601.230
7020C100150241.50 1.000 67.95 69.30 64001.251
7020AC100150241.50 1.000 63.90 66.15 51201.273
