CHG provides screw bearings as follows：
7602, 7603 series , TAC series
Ball guide polyamide resin cage (Tnl)
Contact sealing ring ( 2RS ) at both end faces.

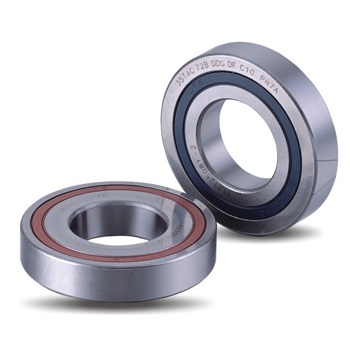

Screw Bearing With Sealing
The features of CHG screw bearing include 60° big contact angle, increasing ball number and higher axial rigidity. Based on the 76 series, the contact type sealing rings are added on the two end faces , impurities are prevented into the bearing and the bearing service life is prolonged.
CHG provides screw bearings as follows：
7602, 7603 series , TAC series
Ball guide polyamide resin cage (Tnl)
Contact sealing ring ( 2RS ) at both end faces.
| Bearing Type | Size （mm） | Basic Load Rating （kN） | Steel Balls Limit Speed （r/min） | Weight (kg) | ||||
| d | D | B | r （min） | Ca | Coa | Grease Lubrication | ||
| 760201-2RS | 12 | 32 | 10 | 0.6 | 8.4 | 14.0 | 11000 | 0.040 |
| 760202-2RS | 15 | 35 | 11 | 0.6 | 9.1 | 16.6 | 10000 | 0.050 |
| 760203-2RS | 17 | 40 | 12 | 0.6 | 12.0 | 22.6 | 8700 | 0.070 |
| 760204-2RS | 20 | 47 | 14 | 1.0 | 14.6 | 27.0 | 7500 | 0.130 |
| 760205-2RS | 25 | 52 | 15 | 1.0 | 16.7 | 36.0 | 6500 | 0.160 |
| 760206-2RS | 30 | 62 | 16 | 1.0 | 20.5 | 45.8 | 5500 | 0.240 |
| 760207-2RS | 35 | 72 | 17 | 1.1 | 25.4 | 60.0 | 4600 | 0.340 |
| 760208-2RS | 40 | 80 | 18 | 1.1 | 30.9 | 76.8 | 4200 | 0.440 |
| 760209-2RS | 45 | 85 | 19 | 1.1 | 35.2 | 86.5 | 3800 | 0.500 |
| 760210-2RS | 50 | 90 | 20 | 1.1 | 38.9 | 89.7 | 3600 | 0.570 |
| 760304-2RS | 20 | 52 | 15 | 1.1 | 19.1 | 37.3 | 7000 | 0.170 |
| 760305-2RS | 25 | 62 | 17 | 1.1 | 23.7 | 49.6 | 5600 | 0.280 |
| 760306-2RS | 30 | 72 | 19 | 1.1 | 29.0 | 64.0 | 5000 | 0.410 |
| 15TAC47B DDG | 15 | 47 | 15 | 1.0 | 14.5 | 27.0 | 7400 | 0.140 |
| 17TAC47B DDG | 17 | 47 | 15 | 1.0 | 14.5 | 27.0 | 7400 | 0.135 |
| 20TAC47B DDG | 20 | 47 | 15 | 1.0 | 14.5 | 27.0 | 7400 | 0.130 |
| 25TAC62B DDG | 25 | 62 | 15 | 1.0 | 21.2 | 48.6 | 5400 | 0.250 |
| 30TAC72B DDG | 30 | 62 | 15 | 1.0 | 21.2 | 48.6 | 5400 | 0.220 |
| 35TAC72B DDG | 35 | 72 | 15 | 1.0 | 23.0 | 59.8 | 4400 | 0.310 |
| 40TAC72B DDG | 40 | 72 | 15 | 1.0 | 23.0 | 59.8 | 4400 | 0.275 |
| 40TAC90B DDG | 40 | 90 | 20 | 1.0 | 48.0 | 115.7 | 3800 | 0.670 |
| 45TAC100B DDG | 45 | 100 | 20 | 1.0 | 52.0 | 152.0 | 3400 | 0.840 |
| 50TAC100B DDG | 50 | 100 | 20 | 1.0 | 52.0 | 152.0 | 3400 | 0.770 |
