Deep groove ball bearing | precision deep groove ball bearings

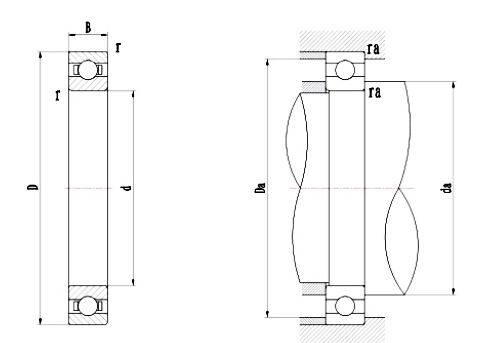

Details Drawing618 series619 series Comments

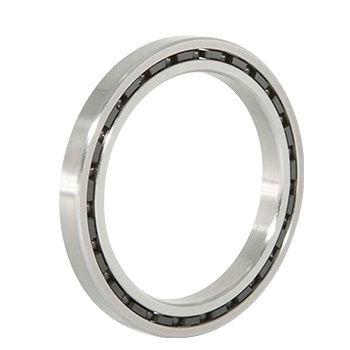

The deep groove ball bearing is a kind of rolling bearing with most representatives, and it has features of small friction coefficient, high limiting speeds, simple structure, low cost, and high manufacturing precision. It has various sizes and structures, and is used in precision instruments, low noise motors, automobiles, motorcycles and general machinery industries, and a kind of bearing with most applications in the machinery industry. The bearing can bear mainly the radial load, but also can bear a certain axial load.

With larger radial clearance, the axial carrying load can be increased. When it only bears the radial load, the contact angle should be zero; when it bears an axial load, the contact angle should be greater than zero. A stamped ribbon cage is commonly machined as the solid cage; sometimes the nylon cage can also be used.

After the deep groove ball bearing is mounted on the shaft, within the axial clearance of the bearing, the axial displacement of the shaft or the housing in both directions can be limited, so it can be used for axial positioning in both directions. In addition, the bearing has also some self-aligning capability; when it is tilted to 2' ~ 10' corresponding to the housing, it still can be operated normally, but there may be a certain influence on the bearing life. The deep groove ball bearing cage is commonly the stamped steel ribbon shape, and the machined metal solid cage is also used for large bearing.

The deep groove ball bearing is the most commonly used rolling bearing. It has simple structure and is easy to use. It is mainly used to bear the radial load; when the radial clearance of bearing is increased, it will show a certain performances of the angular contact ball bearing and can withstand radial and axial integrated load. When the speed it too high and the thrust ball bearing can not be used, it can also bear only the axial load. Compared with other types of bearings with the same sizes, it has small friction coefficient and a high limiting speeds, but it can not bear the impact and is not suitable to bear a big load.

Please kindly post your comments,we will attach great importance to it,and give our reply quickly.Thank you.

Dimensions				Basic Load Rating		Designation	Weight	Installation Size			Limiting Speed
mm				kN			kg	mm			r/min
d	D	B	rmin	Cr	Cor		kg	damin	Damax	ramax	Grease	Oil
100	125	13	1	19.6	21.2	61820	0.31	105	120	1	4800	5700
110	140	16	1	28.1	30.7	61822	0.61	115	135	1	4300	5100
120	150	16	1	29.0	33.0	61824	0.66	125	145	1	4000	4700
130	165	18	1.1	36.9	41.2	61826	0.94	136.5	158.5	1	3600	4300
140	175	18	1.1	38.2	44.4	61828	1.0	146.5	168.5	1	3400	4000
150	190	20	1.1	49.1	58.5	61830	1.15	156.6	183.5	1	3000	3600
160	200	20	1.1	48.5	61	61832	1.23	166.5	193.5	1	2800	3400
170	215	22	1.1	61.5	78	61834	1.9	176.5	208.5	1	2600	3200
180	225	22	1.1	62.3	78.5	61836	1.72	186.5	218.5	1	2400	3000
190	240	24	1.5	75.1	93.5	61838	2.53	198	232	1.5	2200	2800
200	250	24	1.5	74	98	61840	2.67	208	242	1.5	2200	2800
220	270	24	1.5	76.5	97.8	61844	2.9	228	262	1.5	1900	2400
240	300	28	2	83.5	108	61848	4.48	249	291	2	1800	2200
260	320	28	2	101	148	61852	4.84	269	311	2	1700	2000
280	350	33	2	133	191	61856	7.2	289	341	2	1600	1900

Dimensions				Basic Load Rating		Designation	Weight	Installation Size			Limiting Speed
mm				kN			kg	mm			r/min
d	D	B	rmin	Cr	Cor		kg	damin	Damax	ramax	Grease	Oil
300	380	38	2.1	166	233	61860	10.3	311	369	2	1400	1700
320	400	38	2.1	168	244	61864	10.8	331	389	2	1300	1600
340	420	38	2.1	175	265	61868	11.5	351	409	2	1200	1500
360	440	38	2.1	192	290	61872	11.8	371	429	2	1100	1400
380	480	46	2.1	238	375	61876	19.5	391	469	2	1000	1300
400	500	46	2.1	241	390	61880	20.5	411	489	2	1000	1300
420	520	46	2.1	245	410	61884	21.4	431	509	2	950	1200
440	540	46	2.1	249	425	61888	22.3	451	529	2	900	1100
460	580	56	3	310	550	61892	34.3	473	567	2.5	900	1100
480	600	56	3	315	575	61896	35.4	493	587	2.5	850	1000
500	620	56	3	320	600	618/500	37.2	513	607	2.5	800	950
530	650	56	3	325	625	618/530	39.8	543	637	2.5	750	900
560	680	56	3	330	650	618/560	41.5	573	667	2.5	700	850
600	730	60	3	355	735	618/600	50.9	613	717	2.5	670	800

Dimensions				Basic Load Rating		Designation	Weight	Installation Size			Limiting Speed
mm				kN			kg	mm			r/min
d	D	B	rmin	Cr	Cor		kg	damin	Damax	ramax	Grease	Oil
630	780	69	4	420	890	618/630	71.3	646	767	3	630	750
670	820	69	4	435	965	618/670	75.4	686	807	3	560	670
710	870	74	4	480	1100	618/710	92.6	726	854	3	530	630
750	920	78	5	525	1260	618/750	110	770	900	4	500	600
800	980	82	5	530	1310	618/800	132	820	960	4	450	530
850	1030	82	5	559	1430	618/850	140	868	1012	4	410	470
900	1090	85	5	618	1532	618/900	160	920	1070	4	350	410
950	1150	90	5	637	1730	618/950	190	968	1132	4	290	350

Note:

1.Rate and speed in the catalogue is changed with the change of contact angle,please consult CHG technic department.

2.Our company can also produce diameter series 7 bearings(Super thin-section),please consult CHG technical department.

Dimensions				Basic Load Rating		Designation	Weight	Installation Size			Limiting Speed
mm				kN			kg	mm			r/min
d	D	B	rmin	Cr	Cor		kg	damin	Damax	ramax	Grease	Oil
100	140	20	1.1	45	41.9	61920	0.96	106.5	133.5	1	4500	5300
110	150	20	1.1	47.9	47.8	61922	1.04	116.5	43.5	1	4100	4900
120	165	22	1.1	57.2	56.9	61924	1.41	126.5	158.5	1	3800	4400
130	180	24	1.5	69.6	70.0	61926	1.86	138	172	1.5	3400	4100
140	190	24	1.5	71.3	74.8	61928	1.98	148	182	1.5	3200	3800
150	210	28	2	85	90.5	61930	2.59	159	201	2	2800	3400
160	220	28	2	87	96	61932	2.71	169	211	2	2600	3200
170	230	28	2	88.8	100	61934	2.85	179	221	2	2400	3000
180	250	33	2	119	133	61936	4.16	189	241	2	2200	2800
190	260	33	2	117	133	61938	5.18	199	251	2	2200	2800
200	280	38	2.1	149	168	61940	7.28	211	269	2	2000	2600
220	300	38	2.1	152	178	61944	7.88	231	289	2	1900	2400
240	320	38	2.1	154	190	61948	8.49	251	309	2	1800	2200
260	360	46	2.1	210	268	61952	14	271	349	2	1600	1900
280	380	46	2.1	209	272	61956	15.1	291	369	2	1500	1800

Dimensions				Basic Load Rating		Designation	Weight	Installation Size			Limiting Speed
mm				kN			kg	mm			r/min
d	D	B	rmin	Cr	Cor		kg	damin	Damax	ramax	Grease	Oil
300	420	56	3	270	375	61960	24.5	313	407	2.5	1300	1600
320	440	56	3	275	392	61964	25.3	333	427	2.5	1200	1500
340	460	56	3	292	418	61968	26.6	353	447	2.5	1100	1400
360	480	56	3	280	425	61972	27.9	373	467	2.5	1100	1400
380	520	65	4	338	540	61976	40	425	475	3	1000	1300
400	540	65	4	335	540	61980	42	416	524	3	950	1200
420	560	65	4	340	570	61984	43.6	436	544	3	900	1100
440	600	74	4	395	680	61988	60.2	456	584	3	900	1100
460	620	74	4	405	720	61992	62.6	476	604	3	850	1000
480	650	78	5	450	815	61996	73.5	500	630	4	800	950
500	670	78	5	460	865	619/500	82	520	650	4	750	900
530	710	82	5	455	870	619/530	89.8	550	690	4	750	900
560	750	85	5	525	1040	619/560	105	580	730	4	670	800
600	800	90	5	550	1160	619/600	120	620	780	4	630	750

Dimensions				Basic Load Rating		Designation	Weight	Installation Size			Limiting Speed
mm				kN			kg	mm			r/min
d	D	B	rmin	Cr	Cor		kg	damin	Damax	ramax	Grease	Oil
630	850	100	6	625	1350	619/630	163	654	826	5	600	700
670	900	103	6	675	1460	619/670	181	694	876	5	530	630
710	950	106	6	715	1640	619/710	220	734	926	5	500	600
750	1000	112	6	785	1840	619/750	245	774	976	5	480	560
800	1060	115	6	825	2050	619/800	275	824	1036	5	430	500
850	1120	118	6	832	2160	619/850	310	873	1090	5	380	440
900	1180	122	6	852	2280	619/900	350	923	1157	5	320	380
950	1250	132	6	1010	2800	619/950	390	978	1222	5	260	320

Note:
1.Rate and speed in the catalogue is changed with the change of contact angle,please consult CHG technical department.

2.Our company can also produce diameter series 7 bearings(Super thin- section),please consult CHG technical department.
