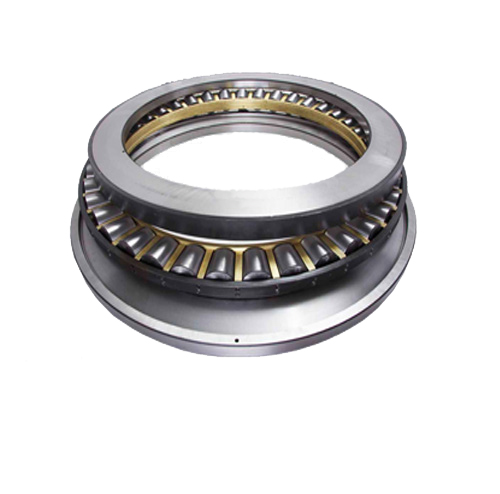

Tapered roller thrust bearings can only carry axial loads and limit axial displacement in one direction, so they can be used as axial locating bearings in one direction. Comparing with cylindrical roller thrust bearings, their loading capacity is higher, relative slippage and limiting speed are lower.
Steel or brass cages are used in tapered roller thrust bearings.
Tapered roller thrust bearing are widely used in construction machinery, automotives, generating equipments, etc.

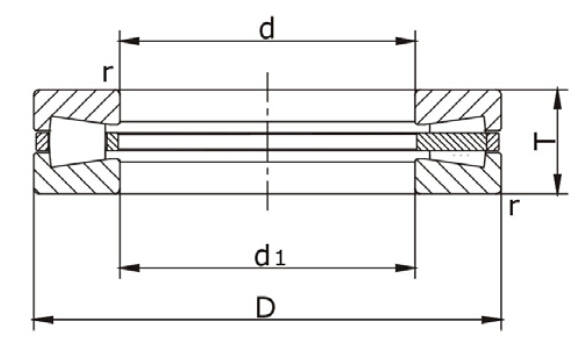

Boundary dimensions | Basic load ratings | Designations | Mass | ||||||||
mm | kN | Current | Original | kg | |||||||
D | D1 | d1 | T | R | M 1 | M 2 | rmin | Coa | |||
150 | 148 | 127 | 48 | 228.6 | M12 | - | 1.5 | 1630 | TTSV150 | 4297/150 | 5 |
175 | 173 | 152 | 53 | 228.6 | M12 | - | 1.5 | 2180 | TTSV175 | 4297/175 | 8 |
203 | 201 | 178 | 65 | 254 | M12 | - | 1.5 | 2540 | TTSV203 | 4297/203 | 11 |
205 | 203 | 178 | 65 | 254 | M20 | - | 1.5 | 3370 | TTSV205 | 4297/205 | 15 |
235 | 233 | 208 | 73 | 280 | M20 | - | 1.5 | 3370 | TTSV235 | 4297/235 | 18 |
265 | 263 | 229 | 81 | 304.8 | M20 | - | 1.5 | 4130 | TTSV265 | 4297/265 | 24 |
320 | 318 | 280 | 95 | 380 | M24 | - | 1.5 | 7370 | TTSV320 | 4297/320 | 42 |
377 | 375 | 330 | 112 | 457.2 | M24 | - | 2.5 | 8230 | TTSV377 | 4297/377 | 86 |
380 | 378 | 330 | 112 | 457.2 | M24 | M30 | 1.5 | 8220 | TTSV380 | 4297/380 | 67 |
410 | 408 | 355 | 122 | 508 | M24 | M30 | 3 | 11300 | TTSV410 | 4297/410 | 115 |
440 | 438 | 380 | 130 | 508 | M24 | M36 | 3 | 18500 | TTSV440 | 4297/440 | 140 |
495 | 492 | 432 | 146 | 558.8 | M24 | M36 | 3 | 19100 | TTSV495 | 4297/495 | 198 |
525 | 522 | 460 | 155 | 635 | M24 | M36 | 3 | 20380 | TTSV525 | 4297/525 | 210 |
555 | 552 | 482 | 165 | 635 | M24 | M36 | 3 | 21380 | TTSV555 | 4297/555 | 275 |
580 | 577 | 510 | 165 | 710 | M24 | M42 | 3 | 23540 | TTSV580 | 4297/580 | 250 |
610 | 607 | 533 | 178 | 762 | M30 | M42 | 3 | 24170 | TTSV610 | 4297/610 | 350 |
640 | 637 | 550 | 185 | 762 | M30 | M42 | 3 | 28670 | TTSV640 | 4297/640 | 410 |
