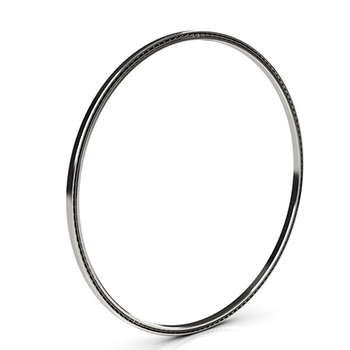

Open Slim Bearing Angular Contact Type A
Thin-Section Bearings
Difference between Thin Section Angular Contact Ball Bearing and Standard Angular Contact Ball bearings is the cross section dimension were designed to be single, the cross section bearings and standard dimension is unchangeable in a series.

Details HKAA/HKAHKBHKCHKDHKFHKG Comments

Difference between Thin Section Angular Contact Ball Bearing and Standard  Angular Contact Ball bearings is the cross section dimension were designed to be single, the cross section bearings and standard dimension is unchangeable in a series. It won’t increase with enhance of bore diameter. Therefore, this kinds of thin section bearings were called uniform cross section thin-section bearings. By using the same series of thin-section bearings throughout a products line, the designer could standardize on common components.

Please kindly post your comments,we will attach great importance to it,and give our reply quickly.Thank you.

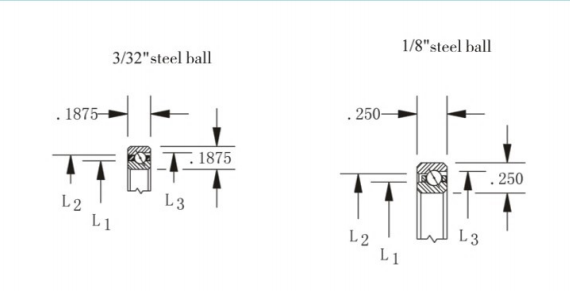

HKAA series


     Weight
     Kg

Type

Dimension(inch/mm)

Basic Load Ratings(N)

d

D

L1

L2

L3

Radial

Thrust

Cor

Cr

Coa

Ca

HKAA010A
1.000

25.4
1.375

34.925
1.142

29.0
1.236

31.4
1.274

32.4
1510
670
4310
2000
0.011
HKAA015A
1.500

38.1
1.875

47.625
1.642

41.7
1.736

44.1
1.774

45.1
2130
890
6130
3250
0.017

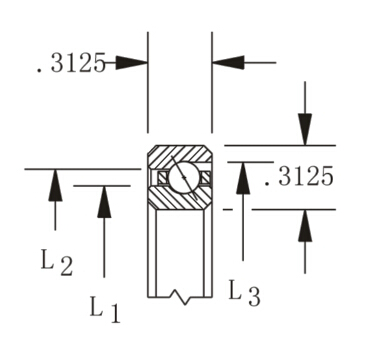

HKA series


     Weight
     Kg

Type

Dimension(inch/mm)

Basic Load Ratings(N)

d

D

L1

L2

L3

Radial

Thrust

Cor

Cr

Coa

Ca

HKA020A

2.000

50.8
2.500

63.5
2.186

55.5
2.314

58.8
2.369

60.2
3510
1470
10140
4270
0.045
HKA025A
2.500

63.5
3.000

76.2
2.686

68.2
2.814

71.5
2.869

72.9
4270
1690
12360
4890
0.054
HKA030A
3.000

76.2
3.500

88.9
3.186

80.9
3.314

84.2
3.367

85.6
5070
1910
14620
5470
0.064
HKA035A
3.500

88.9
4.000

101.6
3.386

93.6
3.814

96.9
3.867

98.2
5830
2090
16850
6000
0.077
HKA040A
4.000

101.6
4.500

114.3
4.186

106.3
4.314

109.6
4.367

110.9
6630
2270
19110
6530
0.086
HKA042A
4.250

107.95
4.750

120.65
4.436

112.7
4.564

115.9
4.615

117.2
7020
2360
20230
6800
0.091
HKA045A
4.500

114.3
5.000

127
4.686

119
4.814

122.3
4.865

123.6
7380
2450
21380
7020
0.095
HKA047A
4.750

120.65
5.250

133.35
4.936

125.4
5.064

128.6
5.115

129.9
7780
2530
22490
7290
0.100
HKA050A
5.000

127.0
5.500

139.7
5.186

131.7
5.314

135.0
5.365

136.3
8180
2620
23600
7510
0.104
HKA055A
5.500

139.7
6.000

152.4
5.686

144.4
5.814

147.7
5.863

148.9
8980
2760
25870
8000
0.113
HKA060A
6.000

152.4
6.500

165.1
6.186

157.1
6.314

160.4
6.363

161.6
9740
2930
28090
8450
0.127
HKA065A
6.500

165.1
7.000

177.8
6.686

169.8
6.814

173.1
6.861

172.3
10540
3070
30360
8890
0.136
HKA070A
7.000

177.8
7.500

190.5
7.186

182.5
7.314

185.8
7.361

187.0
11290
3250
32630
9340
0.145
HKA075A
7.500

190.5
8.000

203.2
7.686

195.2
7.814

198.5
7.861

199.7
12090
3380
34850
9740
0.154
HKA080A
8.000

203.2
8.500

215.9
8.186

207.9
8.314

211.2
8.359

212.3
12850
3510
37120
10140
0.163
HKA090A
9.000

228.6
9.500

241.3
9.186

233.3
9.314

236.6
9.357

237.7
14400
3780
41610
10980
0.186
HKA100A
10.000

254.0
10.500

266.7
10.186

258.7
10.314

262.0
10.355

263.0
15960
4050
46100
11740
0.204
HKA110A
11.000

279.4
11.500

292.1
11.186

284.1
11.314

287.4
11.353

288.4
17510
4310
50580
12490
0.227
HKA120A
12.000

304.8
12.500

317.5
12.186

309.5
12.314

312.8
12.349

313.7
19070
4580
55070
55070
0.245

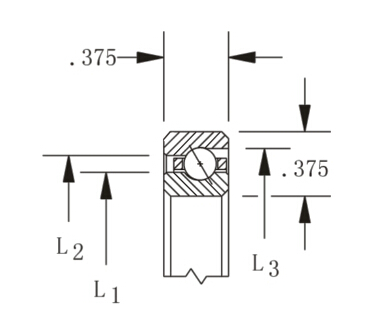

HKB series


     Weight
     Kg

Type

Dimension(inch/mm)

Basic Load Ratings(N)

d

D

L1

L2

L3

Radial

Thrust

Cor

Cr

Coa

Ca

HKB020A
2.000

50.8
2.625

66.675
2.231

56.7
2.393

60.8
2.464

62.6
4850
2130
14000
6130
0.068
HKB025A
2.500

63.5
3.125

79.375
2.731

69.4
2.893

73.5
2.964

75.3
5960
2450
17160
7070
0.086
HKB030A
3.000

76.2
3.625

92.075
3.231

82.1
3.393

86.2
3.462

87.9
6890
2710
19870
7780
0.100
HKB035A
3.500

88.9
4.125

104.775
3.731

94.8
3.893

98.9
3.962

100.6
7960
2980
23030
8580
0.122
HKB040A
4.000

101.6
4.625

117.475
4.432

107.5
4.393

111.6
4.460

113.3
9070
3250
26180
9340
0.136
HKB042A
4.200

107.95
4.875

123.825
4.481

113.8
4.643

119.6
4.710
9560
3330
27560
9650
0.141
HKB045A
4.500

114.3
5.125

130.175
4.731

120.2
4.893

124.3
4.960

126.0
10000
3470
28890
9960
0.154
HKB047A
4.750

120.65
5.375

136.525
4.981

126.6
5.143

130.6
5.210

132.2
10620
3600
30720
10400
0.159
HKB050A
5.000

127
5.625

142.875
5.231

132.9
5.393

137.0
5.460

138.7
11110
3690
32050
10710
0.168
HKB055A
5.500

139.7
6.125

155.575
5.731

145.6
5.893

149.7
5.958

151.3
12180
3960
35200
11380
0.181
HKB060A
6.000

152.4
6.625

168.275
6.231

158.3
6.393

162.4
6.458

164
13290
4180
38360
12050
0.200
HKB065A
6.500

165.1
7.125

180.975
6.731

171.0
6.893

175.1
6.958

176.7
14220
4360
41070
12620
0.213
HKB070A
7.000

177.8
7.625

193.675
7.231

183.7
7.393

187.8
7.456

189.4
15340
4580
44270
13250
0.227
HKB075A
7.500

190.5
8.125

206.375
7.731

196.4
7.893

200.5
7.955

202.1
16450
4800
27230
13870
0.245
HKB080A
8.000

203.2
8.625

219.075
8.231

209.1
8.393

213.2
8.453

214.7
17510
5020
50580
14490
0.259
HKB090A
9.000

228.6
9.625

244.475
9.231

234.5
9.393

238.6
9.451

240
19560
5420
56450
15600
0.290
HKB100A
10.000

254
10.625

269.875
10.231

259.9
10.393

264
10.449

265.4
21740
5780
62760
16710
0.322
HKB110A
11.000

279.4
11.625

295.275
11.231

285.3
11.393

289.4

290.8
11.447
23780
6130
68630
17780
0.354
HKB120A
12.000

304.8
12.625

320.675
12.231

310.7
12.393

314.8
12.445

316.1
25960
6530
74940
18850
0.386
HKB140A
14.000

355.6
14.625

371.475
14.231

361.5
14.393

365.6
14.439

366.8
30050
7200
86680
20760
0.445
HKB160A
16.000

406.4
16.625

422.275
16.231

412.3
16.393

416.4
16.433

417.4
34270
7870
98900
22670
0.509
HKB180A
18.000

457.2
18.625

473.075
18.231

463.1
18.393

467.2
18.425

468
38490
8490
111080
24490
0.572
HKB200A
20.000

508
20.625

523.875
20.231

513.9
20.393

518
20.416

518.6
42720
9110
123260
26230
0.635


HKC series


     Weight
     Kg

Type

Dimension(inch/mm)

Basic Load Ratings(N)

d

D

L1

L2

L3

Radial

Thrust

Cor

Cr

Coa

Ca

HKC040A
4.000

101.6
4.750

120.65
4.277

108.6
4.473

113.6
4.554

115.7
11340
4270
32720
12310
0.200
HKC042A
4.200

107.95
5.000

127
4.527

115
4.723

120
4.804

122
12050
4450
34760
12800
0.209
HKC045A
4.500

114.3
5.250

133.35
4.777

121.3
4.973

126.3
5.052

128.3
12710
4620
36760
13290
0.222
HKC047A
4.750

120.65
5.000

139.7
5.027

127.7
5.223

132.7
5.302

134.7
13420
4760
38760
13780
0.231
HKC050A
5.000

127
5.750

146.05
5.277

134
5.473

139
5.552

141
14140
4930
40760
14220
0.245
HKC055A
5.500

139.7
6.250

158.75
5.777

146.7
5.973

151.7
6.052

153.7
15290
5200
44090
14980
0.263
HKC060A
6.000

152.4
6.750

171.45
6.277

159.4
6.473

164.4
6.550

166.4
16670
5510
48100
15910
0.290
HKC065A
6.500

165.1
7.250

184.15
6.777

172.1
6.973

177.1
7.050

179
18050
5820
52100
16760
0.308
HKC070A
7.000

177.8
7.750

196.85
7.277

184.4
7.473

189.8
7.550

197.8
19200
6050
55430
17490
0.336
HKC075A
7.500

190.5
8.250

208.55
7.777

197.5
7.973

202.5
8.048

204.4
20580
6360
59470
18310
0.354
HKC080A
8.000

203.2
8.750

222.25
8.277

210.2
8.473

215.2
8.548

217.1
22010
6620
63480
19110
0.381
HKC090A
9.000

228.6
9.750

247.65
9.277

235.6
9.473

240.6
9.546

242.5
24540
7110
70810
20580
0.445
HKC100A
10.000

254
10.750

273.05
10.277

267
10.473

266
10.544

267.8
27290
7650
78810
22090
0.472
HKC110A
11.000

279.4
11.750

298.45
11.277

286.4
11.473

291.4
11.542

293.2
29870
8130
86190
23470
0.517
HKC120A
12.000

304.8
12.750

323.85
12.277

311.8
12.473

316.8
12.540

318.5
32400
8580
93520
24800
0.558
HKC140A
14.000

355.6
14.750

374.65
14.277

413.4
14.473

418.4
14.535

419.8
37740
9510
108900
27430
0.649
HKC160A
16.000

406.4
16.750

425.25
16.277

413.4
16.473

418.4
16.529

419.8
43030
10360
124240
29920
0.739
HKC180A
18.000

457.2
18.750

476.25
18.277

464.2
18.473

469.2
18.523

470.5
48360
11200
139620
32360
0.830
HKC200A
20.000

508
20.750

527.05
20.277

515
20.473

520
20.517

521.1
53470
11960
154330
34580
0.921

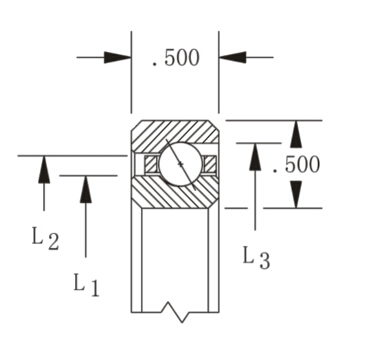

HKD series


     Weight
     Kg

Type

Dimension(inch/mm)

Basic Load Ratings(N)

d

D

L1

L2

L3

Radial

Thrust

Cor

Cr

Coa

Ca

HKD040A
4.000

101.6
5.000

127
4.370

111
4.630

117.6
4.741

120.4
15780
6580
45610
18940
0.363
HKD042A
4.250

107.95
5.250

133.35
4.620

117.3
4.880

124
4.991

126.8
16670
6800
48140
19650
0.381
HKD045A
4.500

114.3
5.500

139.7
4.870

123.7
5.130

130.3
5.241

133.1
17560
7020
50670
20310
0.400
HKD047A
4.750

120.65
5.750

146.05
5.120

130.0
5.380

136.7
5.490

139.4
18450
7290
53210
20980
0.422
HKD050A
5.000

127
6.000

152.4
5.370

136.4
5.630

143.0
5.740

145.8
19290
7510
55740
21650
0.445
HKD055A
5.500

139.7
6.500

165.1
5.870

149.1
6.130

155.7
6.238

158.4
21070
7960
60810
22940
0.481
HKD060A
6.000

152.4
7.000

177.8
6.370

161.8
6.630

168.4
6.738

171.1
22800
8400
65880
24180
0.522
HKD065A
6.500

165.1
7.500

190.5
6.870

174.5
7.130

181.1
7.236

183.8
24580
8800
70940
25430
0.562
HKD070A
7.000

177.8
8.000

203.2
7.370

187.2
7.630

193.8
7.736

196.5
26310
9200
76010
26630
0.603
HKD075A
7.500

190.5
8.500

215.9
7.870

199.9
8.130

206.5
8.236

209.2
28090
9650
81080
27780
0.644
HKD080A
8.000

203.2
9.000

228.6
8.370

212.6
8.630

219.2
8.734

221.8
29830
10050
86140
28940
0.689
HKD090A
9.000

228.6
10.000

254
9.370

238
9.630

244.6
9.732

247.2
33340
10800
96280
31160
0.767
HKD100A
10.000

254
11.000

279.4
10.370

263.4
10.630

270
10.732

272.6
36850
11560
106410
33340
0.848
HKD110A
11.000

279.4
12.000

304.8
11.370

288.8
11.630

295.4
11.730

298
40360
12270
116550
35380
0.930
HKD120A
12.000

304.8
13.000

330.2
12.370

314.2
12.630

320.8
12.728

323.2
43870
12980
126680
37430
1.010
HKD140A
14.000

355.6
15.000

381
14.370

365
14.630

371.6
14.724

374
50900
14310
146950
41290
1.170
HKD160A
16.000

406.4
17.000

431.8
16.370

415.8
16.630

422.4
16.718

424.6
57920
15600
167220
45030
1.330
HKD180A
18.000

457.2
19.000

482.6
18.370

466.6
18.630

473.2
18.712

475.3
64940
16850
187490
48580
1.490
HKD200A
20.000

508
21.000

533.4
20.370

517.4
20.630

524
20.705

525.9
71970
18050
207760
52050
1.660

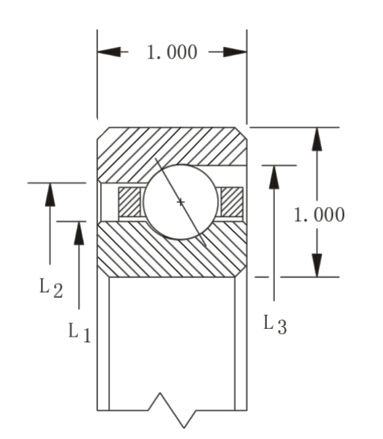

HKF series


     Weight
     Kg

Type

Dimension(inch/mm)

Basic Load Ratings(N)

d

D

L1

L2

L3

Radial

Thrust

Cor

Cr

Coa

Ca

HKF040A

4.000

101.6
5.000

139.7
4.555

115.7
4.945

125.6
5.115

129.9
28230
12980
81520
37430
0.875
HKF042A
4.250

107.95
5.750

146.05
4.805

122
5.195

132
5.365

136.3
29340
13290
84680
38360
0.930
HKF045A
4.500

114.3
6.000

152.4
5.055

128.4
5.445

138.3
5.615

142.6
31520
13960
90950
40230
0.975
HKF047A
4.750

120.65
6.250

158.75
5.305

134.7
5.695

144.7
5.865

149
32580
14270
94060
41160
1.040
HKF050A
5.000

127
6.500

165.1
5.555

141.1
5.945

151.0
6.115

155.3
33650
14580
97210
42050
1.090
HKF055A
5.500

139.7
7.000

177.8
6.055

153.8
6.445

163.7
6.613

168
36940
15510
106590
44720
1.180
HKF060A
6.000

152.4
7.500

190.5
6.555

166.5
6.945

176.4
7.113

180.7
40180
16400
116020
47340
1.240
HKF065A
6.500

165.1
8.000

203.2
7.055

179.2
7.445

189.1
7.613

193.4
43430
17290
125440
49870
1.350
HKF070A
7.000

177.8
8.500

215.9
7.555

191.9
7.945

201.8
8.113

206.1
46720
18140
134820
52320
1.450
HKF075A
7.500

190.5
9.000

228.6
8.055

204.6
8.445

214.5
8.610

218.7
48900
18670
141080
53920
1.560
HKF080A
8.000

203.2
9.500

241.3
8.555

217.3
8.945

227.2
9.110

231.4
52140
19510
150510
56320
1.660
HKF090A
9.000

228.6
10.500

266.7
9.555

242.7
9.945

252.6
10.108

256.7
58630
21110
169310
60900
1.810
HKF100A
10.000

254
11.500

292.1
10.555

268.1
10.945

278
11.106

282.1
64100
22360
185000
64590
2.020
HKF110A
11.000

279.4
12.500

317.5
11.555

293.5
11.945

303.4
12.106

307.5
70590
23870
203800
68900
2.180
HKF120A
12.000

304.8
13.500

342.9
12.555

318.9
12.945

328.3
13.104

332.8
76010
25070
219490
72410
2.380
HKF140A
14.000

355.6
15.500

393.7
14.555

369.7
14.945

379.6
15.102

383.6
87970
27650
253990
79790
2.720
HKF160A
16.000

406.4
17.500

444.5
16.555

420.5
16.945

430.4
17.098

434.3
99920
30100
288440
86860
3.220
HKF180A
18.000

457.2
19.500

495.3
18.555

471.3
18.945

481.2
19.096

485
112950
32670
326090
94280
3.580
HKF200A
20.000

508
21.500

546.1
20.555

522.1
20.945

532
21.092

535.7
124910
34940
360580
100810
4.040

HKG series


     Weight
     Kg

Type

Dimension(inch/mm)

Basic Load Ratings(N)

d

D

L1

L2

L3

Radial

Thrust

Cor

Cr

Coa

Ca

HKG040A
4.000

101.6
6.000

152.4
4.742

120.4
5.258

133.6
5.491

139.5
42140
20980
121620
60590
1.640
HKG042A
4.250

107.95
6.250

158.75
4.992

126.8
5.508

139.9
5.741

145.8
44230
21690
227710
62630
1.740
HKG045A
4.500

114.3
6.500

165.1
5.242

133.1
5.758

146.3
5.989

152.1
46360
22360
133800
64590
1.790
HKG047A
4.750

120.65
6.750

171.45
5.492

139.5
6.008

152.6
6.239

158.5
48450
23030
139840
66540
1.890
HKG050A
5.000

127
7.000

177.8
5.742

145.8
6.258

159
6.489

164.8
50540
23690
145930
68450
2.000
HKG055A
5.500

139.7
7.500

190.5
6.242

158.5
6.758

171.7
6.989

177.5
54760
25030
158110
72190
2.150
HKG060A
6.000

152.4
8.000

203.2
6.742

171.2
7.258

184.4
7.489

190.2
58990
03040
170240
75830
2.300
HKG065A
6.500

165.1
8.500

215.9
7.242

183.9
7.758

197.1
7.987

202.9
63210
27520
182420
79430
2.450
HKG070A
7.000

177.8
9.000

228.6
7.742

196.6
8.258

209.8
8.487

215.6
67390
28720
194600
829000
2.660
HKG075A
7.500

190.5
9.500

241.3
8.242

209.3
8.758

222.5
8.987

228.3
71610
29920
206740
86320
2.810
HKG080A
8.000

203.2
10.000

254
8.742

222
9.258

235.2
9.485

240.9
75830
31070
218920
89700
2.970
HKG090A
9.000

228.6
11.000

279.4
9.742

247.4
10.258

260.6
10.485

266.3
84280
33340
243230
96190
3.270
HKG100A
10.000

254
12.000

304.8
10.742

272.8
11.258

286
11.483

291.7
92680
35520
367550
102500
3.630
HKG110A
11.000

279.4
13.000

330.2
11.742

298.2
12.258

311.4
12.481

317
101120
37650
291860
108640
3.940
HKG120A
12.000

304.8
14.000

355.6
12.742

323.6
13.258

336.8
13.481

342.4
109530
39690
316220
114590
4.300
HKG140A
14.000

355.6
16.000

406.4
14.742

374.4
15.258

387.6
15.478

393.1
126370
43650
364850
126060
4.940
HKG160A
16.000

406.4
18.000

457.2
16.742

425.2
17.258

438.4
17.474

443.8
143220
47470
413470
137040
5.620
HKG180A
18.000

457.2
20.000

508
18.742

476
19.258

489.2
19.472

494.6
160110
51120
462280
147570
6.260
HKG200A
20.000

508
22.000

558.8
20.742

526.8
21.258

540
21.468

545.3
176960
54670
510730
157750
6.890
