Home > Products > Thin-Section Bearings
Thin-Section Bearings
The thin section bearings we produce consist of seven series of open types and five series of sealed types. The bore diameter ranges from 1 inch to 40 inch, Cross section ranges from 0.1875 × 0.1875 inch to 1.000 × 1.000 inch. Three kinds open type thin section bearings are available: Radial contact (type C), Angular contact (type A) and Four-point contact (type X). Two kinds sealed thin section bearings are available: Radial contact (type C), and Four-point contact (type X).
Thin section bearings are designed to save space, decrease the overall weight, dramatically reduce friction, and provide excellent running accuracy. The special features of the thin section bearings enable customers to downsize their design and cut manufacturing costs without sacrificing bearing performance or life.

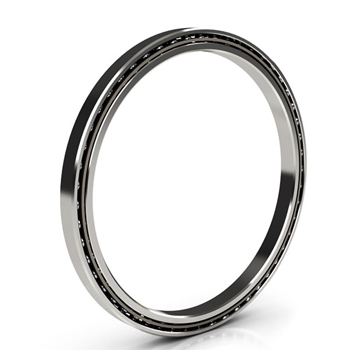

Open Slim Bearing Radial Ball Type C
Features:Thin-section radial contact ball bearings were designed to save space, lower the overall weight of your designs, dramatically reduce friction, and provide excellent running accuracy ect.

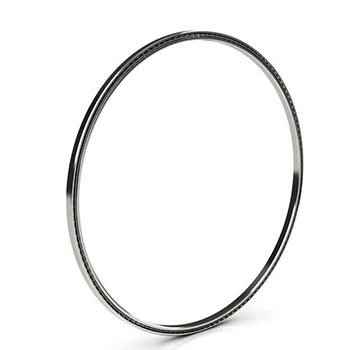

Open Slim Bearing Angular Contact Type A
Features:Difference between Thin Section Angular Contact Ball Bearing and Standard Angular Contact Ball bearings is the cross section dimension were designed to be single, the cross section bearings and standard dimension is unchangeable in a series.

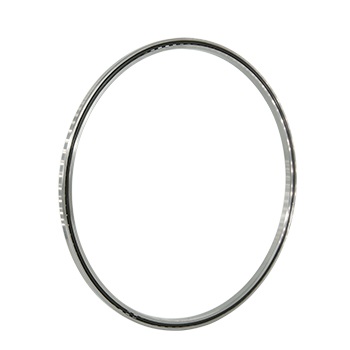

Open Slim Bearing 4 Point Contact Type X
Features:Thin Section Four Point Contact Ball Bearings are unique in that their extremely thin cross section enables them to provide great size and weight reductions for light to medium duty applications with slow or intermittent rotation...
Sealed Slim Bearing Radial Ball Type C
Features:Thin section sealed radial contact ball bearing with their large complements of small diameter balls provide greater stiffness and lower torque while permitting a significant reduction in weight and space when compared to standard section bearings...
Sealed Slim Bearing 4 Point Contact Type X
Features:Thin-section sealed four-point contact ball bearing is also designed for mounting sealing device on both sides on the basis of thin-section four-point contact ball bearing. We have many options for the structural form of the sealing device. The speed is lower than thin-section four-point contact ball bearing.
Slim bearing Metric Series 8mm/13mm/20mm Series
Features:Features: CHG Bearing can do MM Metric Thin Section Bearing including 3 types: Radial contact (type C), Angular contact (type A) and Four-point contact (type X)8mm Series: Inner Diameter from 25 mm to 360mm13mm Series: Inner Diameter from 25 mm to 360mm20mm Series: Inner Diameter from 25 mm to 360mmThe Accuracy class: P0-P6-P5-P4-P2 Avaliable
